Engineering High-Gain Architectural Fenestration for Hamburg’s Urban & Maritime Landscape
Hamburg, as Germany’s prime maritime metropolis and second-largest city, presents a unique architectural landscape where heritage industrial red-brick facades (Klinkerarchitektur) intersect with cutting-edge sustainable developments along the Elbe River, such as HafenCity and Altona. Operating fenestration systems in Northern Germany requires an intimate technical understanding of micro-climatic stress drivers: constant moisture ingress, high-velocity squall winds from the North Sea, demanding thermal insulation mandates under the German Building Energy Act (Gebäudeenergiegesetz – GEG 2024), and stringent sound protection standards (DIN 4109).
As a premier OEM/ODM Aluminium Skylight Windows Supplier & Exporter targeting the Hamburg market, our manufacturing framework bridges Foshan’s world-class precision profile fabrication with Northern European structural and thermal engineering compliance. Skylight windows—often installed on low-pitch roofs, attic conversions (Dachgeschossausbau), and expansive commercial atrium roofs—represent the most vulnerable point of a building envelope regarding solar heat gain, rain seepage, thermal bridge heat loss, and structural deflection under snow and wind loads.
Information Gain Focus: Why Standard Fenestration Fails in Hamburg
Standard off-the-shelf skylights imported without regional customization routinely experience perimeter seal degradation within 36 to 60 months due to salt-laden humid marine air combined with rapid freeze-thaw cycles typical of the Elbe estuary. Our custom OEM/ODM solutions utilize marine-grade 6063-T6 extrusions with Qualicoat Class 2 / Class 3 fluorocarbon (PVDF) surface treatments and multi-chamber polyamide thermal barriers specifically calibrated to eliminate internal condensation under severe outdoor dewpoint drops.
1. Technical Specification & Performance Compliance Matrix for Hamburg
To assist Hamburg-based architects, facade contractors, project dealers, and B2B procurement directors, the following engineering matrix highlights our structural specs against DIN and European Norm (EN) benchmarks required for building permit approvals (Baugenehmigung) in Hamburg.
| Performance Indicator | German / EU Standard | Standard Market OEM Spec | VELTOR OEM/ODM Export Grade | Hamburg Project Compliance Status |
|---|---|---|---|---|
| Thermal Transmittance (Uw) | DIN EN ISO 10077-2 / GEG | 1.4 – 1.6 W/m²K | 0.78 – 1.0 W/m²K | Exceeds GEG 2024 |
| Watertightness Under Pressure | DIN EN 12208 | Class 5A (200 Pa) | Class 9A / E1050 (1050 Pa) | Severe Marine Storm Proof |
| Wind Load Resistance | DIN EN 12210 | Class B3 (1200 Pa) | Class C5 / P3 (2000+ Pa) | High-Rise & Coastal Ready |
| Acoustic Insulation (Rw) | DIN 4109 / EN ISO 717-1 | 32 dB – 35 dB | 42 dB – 48 dB (Acoustic Glazing) | Port & Inner-City Noise Proof |
| Air Permeability | DIN EN 12207 | Class 3 | Class 4 (Highest Rating) | Passivhaus Capable |
| Profile Anodizing / Coating | Qualicoat / ISO 2360 | Standard Powder 40-60µm | PVDF 3-Coat / Qualicoat Seaside | Salt-Mist Corrosion Barrier |
2. Localized Application Scenarios Across Hamburg Real Estate Development
Our OEM/ODM manufacturing capability focuses on modular customization, allowing engineering buyers to match exact rough openings, drainage pitches, and electrical actuation systems required for distinct Hamburg urban typologies:

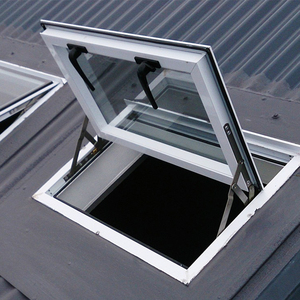

Attic Refurbishments (Dachgeschossausbau)
In historic quarters such as Eimsbüttel, Winterhude, and Eppendorf, residential attic spaces are rapidly converted into luxury penthouses. Our low-profile tilt-and-turn electric skylights integrate flush with traditional slate and tile roofs while offering sound reduction levels up to 45 dB to dampen traffic noise from major thoroughfares.
Commercial Atriums & HafenCity High-Rises
Modern office complexes and hotel developments along the Elbphilharmonie corridor demand large-span automated skylight ribbons. Equipped with dual-drive linear actuators integrated into Building Management Systems (BMS/KNX), these systems automatically operate for natural smoke and heat exhaust ventilation (SHEV / RWA nach DIN EN 12101-2).
Suburban Villa Sunrooms (Blankenese & Alster)
Exclusive villa estates surrounding Outer Alster Lake and Blankenese require bespoke wood-grain finished interior aluminium skylights with self-cleaning (hydrophilic Low-E) argon-filled triple glazing. These provide maximum daylight transmittance without compromising summer solar control (g-value down to 0.28).
3. Regional Architectural Trends & Regulatory Drivers in Northern Germany
The regulatory trajectory in Germany has accelerated the shift away from unreinforced vinyl (uPVC) and standard timber skylights toward advanced thermal-break aluminium systems. Key drivers shaping the Hamburg market include:
- Strict GEG 2024 Thermal Directives: The Building Energy Act dictates that roof window installations in renovation and new construction achieve aggressive overall U-values. By utilizing Technoform PA66 GF25 thermal break strips combined with warm-edge composite spacers (Swisspacer Ultimate), our skylights routinely achieve Passivhaus-level Uw figures.
- Smart Home Actuation & Automated Climate Control: High-end Hamburg properties increasingly mandate hidden motorization. Our OEM/ODM electric skylights incorporate concealed 24V DC / 230V AC chain actuators compatible with rain, wind, and CO2 sensors, delivering automatic closing during sudden coastal rain showers.
- Circular Economy & Recyclability: German green building frameworks (DGNB certification) prioritize cradle-to-cradle materials. Aluminium alloys used in our factory are 100% recyclable, coated with eco-friendly VOC-free powder finishes.
4. Production Capability & Supply Chain Advantages for Hamburg Importers
Partnering directly with an established Foshan OEM/ODM export manufacturer offers structural cost and technical advantages for German project developers and window distributors:
Precision CNC Fabrication
Automated 5-axis CNC machining centers ensure corner mitre tolerances within ±0.1mm, guaranteeing absolute gasket pressure and frame structural integrity under high wind loads.
Certified Glass Supply Chain
Integrated glazing capabilities featuring SGCC, CE, and NFRC certified tempered, laminated security (PVB/SGP), and low-emissivity glass assemblies.
Direct Hamburg Port Logistics
Factory-direct shipping in fully enclosed, reinforced steel-banded wooden crates directly routed to the Port of Hamburg (Hafen Hamburg) with full customs documentation (FOB, CIF, DDP).
