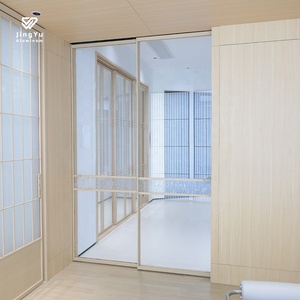

Custom Trackless Aluminum Glass Double Glazed Slim Frame Sliding Door
Get a Quote

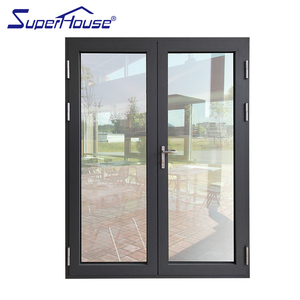

Design Waterproof Aluminium Double Glazing French Double Entry Storm Doors
Get a Quote
Aluminum Alloy Waterproof Folding Sliding Door Minimalist Partition
Get a Quote
DEMEA Single Hung Crank Awning Windows Double Glazed Impact Window
Get a Quote
CE AS2047 Aluminum Glass Louver Window Adjustable Jalousie Window
Get a QuoteArchitectural Engineering of Modern Large-Format Pivot Doors in Southern California
In the contemporary landscape of high-end residential and commercial architecture across Los Angeles, Beverly Hills, Bel-Air, Malibu, and Santa Monica, the exterior entryway has evolved from a functional security portal into a central statement of design identity. High-performance, custom-engineered OEM aluminium pivot entrance doors represent the pinnacle of this movement. Unlike conventional side-hung swing doors operating on standard butt hinges, pivot doors pivot on a vertical axis set at a calculated offset from the frame jamb. This structural geometry allows for monumental leaf dimensions, smooth fluid motion, and uninterrupted visual sightlines that harmonally bridge indoor interiors with Southern California outdoor living environments.
However, fabricating large-scale pivot systems that measure up to 18 feet (5.5 meters) in height and 8 feet (2.4 meters) in width requires rigorous material engineering. Standard aluminium profiles lack the torsional rigidity necessary to prevent thermal warping or sag over continuous operational cycles. As a specialized manufacturer based in Foshan—China's global capital for architectural aluminum extrusion—our facility integrates heavy-duty T6-treated 6063 aluminium profiles with wall thicknesses exceeding 3.0mm, multi-chambered polyamide (PA66 Nylon) thermal breaks, and German-engineered concealed hydraulic hardware systems designed to withstand extreme wind-load dynamics along coastal corridors like the Pacific Coast Highway.
T6 Aircraft-Grade Extrusions
High tensile strength 6063-T6 aluminum alloys engineered to maintain zero deflection even under extreme wind pressures and thermal stress differentials.
California Title 24 Thermal Break
Insulated polyamide PA66 thermal barriers preventing thermal transfer across exterior frame surfaces, ensuring strict compliance with CEC Title 24 Part 6 standards.
Coastal PVDF Corrosion Protection
AAMA 2605 compliant fluorocarbon (PVDF) 3-coat finishes providing 30+ years of salt spray, UV color fade, and oxidation resistance for Malibu beach fronts.
Custom OEM Pivot Door Technical Specifications
Detailed performance metrics engineered for architects, general contractors, and luxury home developers in Greater Los Angeles.
| Engineering Feature | Standard Configuration | High-Performance OEM Upgrade | LA Building Code Compliance |
|---|---|---|---|
| Profile Alloy & Temper | 6063-T5 Architectural Aluminum | 6063-T6 / 6061-T6 Heavy-Duty Profile | ASTM B221 / Structural Deflection PASS |
| Profile Wall Thickness | 2.0mm – 2.5mm Reinforced Section | 3.0mm – 4.5mm Oversized Structural Leaf | High-Wind Load (ASCE 7-16 Zone Standard) |
| Thermal Insulation System | Single Polyamide Strip (14.8mm) | Double Multi-Cavity PA66 Thermal Break (24mm–34mm) | California Title 24 Part 6 Compliant |
| Glazing Specification | 6mm Low-E + 12Ar + 6mm Tempered Glass | 8mm Laminated + 16Ar + 8mm Low-E Triple Glaze | SGCC / ANSI Z97.1 Safety Glass Certified |
| Thermal Performance (U-Factor) | U-Factor: 0.32 - 0.35 BTU/h·ft²·°F | U-Factor: 0.22 - 0.28 BTU/h·ft²·°F | NFRC Certified Rating Thresholds |
| Pivot Hardware System | Heavy-Duty Floor Pivot Spring (300kg) | German Concealed Hydraulic Self-Closing Pivot (1000kg) | ADA Compliant Low Push Force (< 5 lbs) |
| Perimeter Weather Sealing | Dual EPDM Gaskets | Quadruple EPDM + Automatic Drop-Down Bottom Seal | ASTM E283 Air & ASTM E331 Water Seal |
| Locking Security Mechanics | 3-Point Mechanical Latch System | 5-Point Automatic Motorized Biometric Smart Lock | PAS 24 / High Security Forced Entry Standard |
Localized Application Scenarios Across Greater Los Angeles
Custom designed for Southern California's unique microclimates, topography, and architectural styles.
■ Trousdale Estates & Bel-Air Mansions
High-hilltop luxury residences require expansive entrance facades that command attention while handling localized thermal expansion from intense valley heat exposure. Our custom aluminum pivot doors feature integrated thermal expansion breaks and sun-reflective Low-E coatings (such as Solarban 70) that block solar heat radiation without sacrificing indoor daylight transmission. Integrated smart biometrics allow seamless motorized entry for estate owners.
■ Coastal Malibu & Pacific Palisades Beachfronts
Structures positioned along the Pacific coast face severe airborne salt spray, humidity, and coastal wind gusts. We supply specialized marine-grade 50-micron anodized aluminum pivot frames or AAMA 2605 PVDF powder-coated doors fitted with impact-laminated hurricane safety glass. Multi-sealed perimeter gaskets protect structural interiors from wind-driven moisture during heavy atmospheric river rainstorms.
■ West Hollywood & Venice Modernist Homes
In compact, urban modernist lots, space efficiency and indoor-outdoor connectivity are paramount. Ultra-slim profile pivot doors create seamless transitions between private courtyards and open-concept living rooms. Concealed top and bottom pivot hardware embeds directly into finish floor slabs, creating flush zero-threshold entries that meet strict aesthetic requirements and ADA accessibility guidelines.
■ Commercial Boutique & Hospitality Entrances
For upscale commercial projects in Downtown Los Angeles (DTLA), Century City office towers, or Melrose Avenue luxury storefronts, pivot entryways provide high-traffic durability with an unmistakable luxury aesthetic. Equipped with heavy-duty overhead hydraulic door closers, magnetic hold-open systems, and integration options for commercial access control networks.
Navigating California Title 24 Energy Standards & SoCal Trends
The California Building Energy Efficiency Standards (Title 24, Part 6) set some of the strictest energy performance guidelines in North America. For fenestration manufacturers serving Los Angeles, compliance is not optional—it is a critical requirement for obtaining municipal building permits and passing final inspections.
1. Strict Solar Heat Gain Coefficient (SHGC)
Los Angeles lies predominantly within California Climate Zone 9. Title 24 mandates maximum SHGC values around 0.23 to minimize air conditioning loads. Our doors incorporate double-silver and triple-silver Low-E insulating glass units (IGUs) filled with 90% pure Argon gas to meet these targets comfortably.
2. Low Air Infiltration Ratings
Because pivot doors rotate away from conventional frame rebates, air leakage at top and bottom edges can be a concern. Our engineering solution features integrated automatic drop-down bottom seal mechanisms that automatically deploy a neoprene compression gasket when the leaf closes fully, achieving air infiltration rates below 0.1 cfm/ft².
3. Warm-Edge Spacer Technology
To prevent edge-seal condensation and thermal bridging at the perimeter of giant glass panes, we utilize structural stainless steel and hybrid polymer warm-edge spacers, improving overall fenestration U-Factor ratings by up to 12% over traditional aluminum spacer bars.
Why Los Angeles Importers & Contractors Direct-Sourced From Our Foshan Factory
Eliminate intermediary markup while securing architectural-grade customization, rigorous QC testing, and seamless sea freight logistics.
100% Factory Direct OEM Customization
Every opening is built to order. We customize exact frame dimensions, glass makeup, anodized or powder finishes, pull handle designs, and hardware mounting patterns directly from your architect's DWG or BIM drawings.
5-Axis CNC Precision Fabrication
Our workshop in Nanhai District, Foshan utilizes fully automated 5-axis German CNC milling machinery to mill pivot hinge cutouts, lock body pockets, and drainage channels with +/- 0.1mm dimensional tolerance for flawless site assembly.
Pre-Shipment Assembly & Testing
Before crating, 100% of custom pivot doors undergo complete factory pre-assembly. We test hinge rotation smoothness, lock latch alignment, drop-down weather seal activation, and water tightness, delivering video reports to buyers prior to balance payment.
Export-Grade Packaging & Logistics
Heavy oversized glass and aluminum frames are wrapped in protective shrink film, corner guarded, and packed in reinforced fully-enclosed ISPM-15 compliant fumigated wooden crates designed for direct container shipping to the Port of Los Angeles / Long Beach.
Complete Documentation Support
We supply full structural calculation packages, glass engineering certificates (SGCC), thermal simulation reports, and step-by-step installation manuals to streamline local Los Angeles building plan approval.
Dedicated English Technical Team
Collaborate directly with our senior fenestration engineers who speak fluent English and understand US building standards, preventing costly communication errors during shop drawing confirmation.
Foshan Manufacturing Powerhouse: Located in Building 6, Yiqiying Industrial Park, Shishan Town, Nanhai District, Foshan, Guangdong, our factory operates within China's densest premium aluminum extrusion ecosystem. We leverage raw material sourcing efficiencies, cutting-edge thermal break strip technology, and specialized glass processing to offer world-class fenestration solutions at competitive wholesale factory pricing.
Frequently Asked Questions by Los Angeles Buyers & Contractors
Addressing technical, logistical, and code compliance queries regarding custom pivot door imports.
Q: How do your custom pivot entrance doors comply with California Title 24 Energy Standards?
Our custom pivot doors are engineered with multi-chambered polyamide (PA66) thermal break aluminium profiles and dual or triple sealed insulated glass units (IGUs). We utilize high-performance double-silver or triple-silver Low-E coatings combined with Argon gas fill and warm-edge spacers. This configuration lowers the total U-Factor to below 0.28 BTU/h·ft²·°F and SHGC to under 0.22, fully aligning with California Energy Commission (CEC) Title 24 Part 6 fenestration criteria for Climate Zone 9 (Los Angeles Basin).
Q: Can your pivot doors withstand Santa Ana wind loads and coastal moisture in Malibu?
Yes. For coastal LA projects, we construct door leaves using heavy-duty 6063-T6 aluminum extrusions up to 4.0mm thick, reinforced with internal structural steel corner cleats. Frames receive an AAMA 2605 compliant PVDF fluorocarbon finish that withstands salt spray testing for over 4,000 hours without corrosion or color fading. Quadruple EPDM perimeter seals combined with an automatic drop-down mechanical floor gasket provide airtight and watertight sealing under high structural wind pressures.
Q: What pivot hardware brands do you integrate, and what is the maximum weight capacity?
We partner with top-tier global hardware manufacturers including Dormakaba, FritsJurgens, GEZE, and our proprietary heavy-duty stainless steel hydraulic pivot systems. Our systems can support pivot door panels weighing up to 1,000 kg (2,200 lbs) with leaf heights reaching up to 18 feet (5.5 meters). Options include 90-degree hold-open functions, adjustable closing speed control, soft-closing dampers, and motorized remote open integration.
Q: What is the typical lead time from shop drawing approval to arrival at the Port of Los Angeles?
Once CAD shop drawings are officially signed off and deposit is received, manufacturing typically takes 25 to 35 business days depending on custom finish specs (e.g., custom PVDF color matching or specialized glass build-ups). Ocean transit from Southern China ports (Shenzhen/Guangzhou) to the Port of Los Angeles or Long Beach usually takes 16 to 22 days. Total door-to-site timeframe is generally between 7 to 9 weeks.
Q: How are oversized pivot glass doors packed to prevent damage during sea transport?
We utilize export-grade packaging engineered for transpacific ocean freight. Frame profiles are wrapped in anti-scratch protective film, fitted with heavy-duty rubber corner guards, and encapsulated in shock-absorbing foam. Glass units are packed inside custom-built, fully enclosed ISPM-15 fumigated plywood crates with internal vertical bracing and moisture-absorbent desiccant packs to prevent condensation damage.
Q: Do you provide samples and shop drawings before full-scale manufacturing?
Absolutely. For every project, our engineering department produces comprehensive 2D CAD shop drawings and 3D cross-sectional detail drawings illustrating frame profiles, glass build-up, anchor points, drainage channels, and threshold details for architect approval. We also supply physical corner profile samples with specified finishes and glass swatches upon request.
Ready to Elevate Your Los Angeles Architectural Project?
Partner directly with Foshan's premier custom OEM aluminium pivot entrance door manufacturer. Send us your door schedules, CAD plans, or design specs for a competitive factory-direct quote and technical review.
