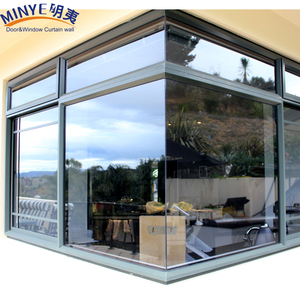

Reinforced Seamless Corner Aluminum Window & Ventana System
Engineered with 90-degree thermal-break seamless corner joints, multi-chamber extrusion profiles, and reinforced structural stability for modern panoramic elevations.
Send an Inquiry
Architectural Catalog
Featured Aluminum Window & Exterior Door Systems
Precision-manufactured in Foshan, China. Fully certified for global commercial, residential, and high-wind coastal applications.
DIN Standard Dual-Color Anthracite Outer Heat & Soundproofing Window
German DIN-standard construction featuring 32mm heavy-duty double glazing, sound-dampening acoustic seals, and dual-tone interior/exterior anodized finishes.
Send an Inquiry

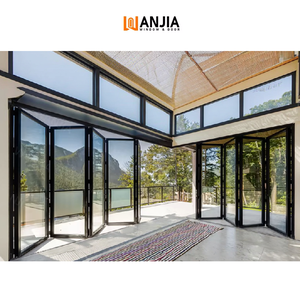

Heavy-Duty Villa Accordion Folding Patio Glass Door System
Top-hung architectural folding doors with bottom guide tracks, multi-point lock mechanisms, and ultra-narrow sash profiles for expansive patio openings.
Send an Inquiry

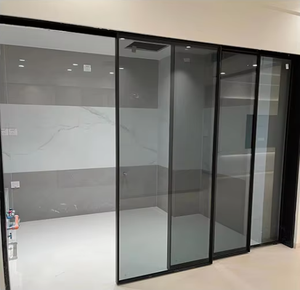

Exterior Flush Modern Sliding Patio Door with Double Tempered Glazing
Flush sill architectural sliding door incorporating concealed drainage channels, high-load stainless steel rollers, and wind-pressure resistant interlocks.
Send an Inquiry

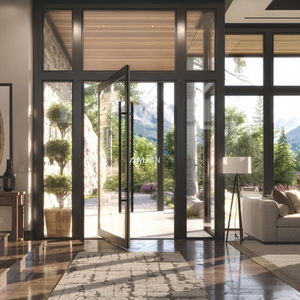

Commercial Grand Exterior Glass Swing Pivot Entrance Door
Custom oversize main entry pivot door system built with hydraulic heavy-duty floor pivots, perimeter EPDM weatherstripping, and anti-burglary security core.
Send an Inquiry
Minimalist Concealed Frame Hydraulic Sliding Aluminum Door Profile
Invisible frame installation door system featuring soft-close hydraulic dampers, magnetic lock latching, and zero-threshold architectural integration.
Send an Inquiry

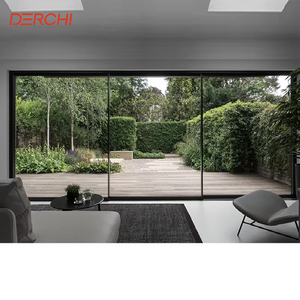

AS2047 Certified Commercial Exterior Double-Glazed Stacker Door
Strictly tested to Australian AS2047 standard for structural deflection, air infiltration, and water penetration resistance with multi-panel stacker configuration.
Send an Inquiry

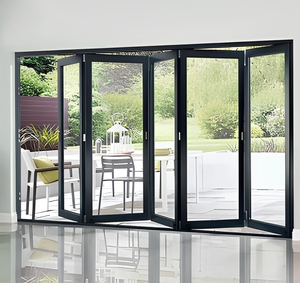

German Hardware Thermal-Break Bi-Fold Exterior Patio Glass Door
Premium folding patio system equipped with authentic German hardware fittings, warm-edge spacer glass units, and heavy-duty extruded aluminum profiles.
Send an Inquiry6063-T5
High-Purity Alloy Grade
PA66-GF25
Thermal Break Strips
100%
Pre-Shipment Trial Assembly
AS2047/CE
Certified Quality Matrix
Industry Whitepaper & Technical Analysis
Understanding the Sourcing Ecosystem for China Aluminum External Doors
When architectural buyers, structural engineers, and commercial project developers evaluate China aluminum external doors manufacturers and factories, they are engaging with the world's most advanced manufacturing ecosystem. Centered in Foshan, Guangdong Province—where industrial leaders like Veltor Window & Door Co., Ltd. operate—the Chinese architectural aluminum sector has evolved far beyond raw cost advantages. Modern procurement decisions are driven by sophisticated structural engineering, custom thermal-break extrusions, automated CNC fabrication, and strict international standard compliance (including AS2047, NFRC, ASTM, and European EN 14351-1 benchmarks).
External door assemblies represent the primary structural and thermal boundary of any building envelope. Unlike interior doors, exterior aluminum doors are subjected to continuous environmental loads: wind pressure differentials, hurricane-force wind gusts, heavy rainfall driven by tropical storms, thermal expansion/contraction cycles, and aggressive UV radiation. Consequently, evaluating a Chinese factory requires analyzing its profile metallurgy, glass processing specifications, seal vulcanization methods, and mechanical hardware integration.
Information Gain Note: The Metallurgical Standard of 6063-T5/T6 Extrusions
Leading Foshan door manufacturers utilize virgin 6063-T5 or 6063-T6 aluminum alloys characterized by high tensile strength (minimum 160 MPa for T5, 205 MPa for T6) and excellent corrosion resistance. Inferior suppliers often blend recycled scrap metal, resulting in structural micro-cracks, premature profile deflection under wind loads, and poor adhesion during anodizing or powder coating processes. Always demand certified mill test certificates (MTC) verifying magnesium (Mg 0.45-0.9%) and silicon (Si 0.2-0.6%) stoichiometry.
Anatomy of a High-Performance Thermal-Break Exterior Door System
The thermal performance of modern aluminum doors relies on thermal break technology. Aluminum inherently possesses a high thermal conductivity ($k \approx 160\text{--}200 \text{ W/m}\cdot\text{K}$). To prevent heat transfer between interior and exterior building zones, precision-engineered polyamide insulating bars are mechanically inserted between the inner and outer aluminum extrusion profiles.
PA66 GF25 Polyamide Strips
High-performance factories specify PA66 (Polyamide 66) reinforced with 25% glass fiber. This material matches aluminum's coefficient of thermal expansion ($2.3 \times 10^{-5}/\text{K}$), preventing delamination during extreme temperature fluctuations while reducing overall frame thermal transmittance ($U_f$) down to $1.2\text{--}1.8 \text{ W/m}^2\text{K}$.
Insulated Glass Units (IGU)
Exterior doors feature double or triple-glazed tempered glass units with Low-Emissivity (Low-E) coatings, argon gas filling (90%+ purity), and warm-edge composite spacers (e.g., Technoform or Swisspacer) that eliminate condensation along perimeter glass sightlines.
EPDM Vulcanized Gaskets
Superior water tightness ($750\text{--}1000\text{ Pa}$) is achieved using continuous, co-extruded EPDM (Ethylene Propylene Diene Monomer) rubber gaskets. EPDM maintains elasticity over 30 years without shrinking, cracking, or hardening under severe solar ultraviolet light exposure.
Strategic Market Intelligence
Future Procurement Trends in China Exterior Aluminum Doors
Key technological shifts reshaping global commercial sourcing and residential architectural specifications over the next decade.
1. Ultra-Slim Sightline Minimalist Sliding Systems
Architectural demand is rapidly shifting away from bulky traditional door frames toward ultra-narrow interlocks (18mm to 25mm visible sightlines). Chinese manufacturers are embedding heavy-duty structural sashes directly into perimeter floor and ceiling tracks, allowing panel glass weights of up to 500kg to slide effortlessly on concealed stainless steel rollers.
2. Zero-Threshold Barrier-Free Drainage Architecture
Modern residential and commercial projects require seamless indoor-to-outdoor transitions. Advanced factories now produce flush-floor threshold door systems incorporating hidden linear drainage channels. These systems pass severe water penetration tests by utilizing pressure-equalized drainage chambers under the floor line.
3. Motorization, Smart Access & IoT Automation
The integration of hidden brushless DC motors, electromagnetic locking mechanisms, and smart home automation (Tuya, KNX, Zigbee) is becoming standard for high-end exterior bi-fold and sliding patio doors. Smart multi-point locking systems automatically engage weather seals upon closure.
4. Sustainable Low-Carbon Aluminum & Fluorocarbon Finishes
Global carbon taxation policies (such as EU CBAM) are compelling Chinese factories to adopt certified hydro-powered low-carbon aluminum billets alongside long-lasting PVDF (Fluorocarbon) electro-static spray coatings (such as AkzoNobel or PPG), offering 25+ year color fastness warranties against salt spray corrosion.
Engineering Metrics
Technical Performance Comparison Matrix
Benchmark parameters across core aluminum external door opening mechanisms.
| Door Mechanism | Max Panel Height | Wind Load Rating | Water Tightness | Thermal Transmittance ($U_w$) | Recommended Hardware Brands |
|---|---|---|---|---|---|
| Heavy-Duty Lift & Slide | Up to 4000 mm | $\ge 4500 \text{ Pa}$ (Class 5) | $\ge 700 \text{ Pa}$ | $1.2 \text{--} 1.6 \text{ W/m}^2\text{K}$ | German GU / Siegenia / Sobinco |
| Thermal-Break Bi-Fold | Up to 3500 mm | $\ge 3000 \text{ Pa}$ (Class 4) | $\ge 500 \text{ Pa}$ | $1.4 \text{--} 1.8 \text{ W/m}^2\text{K}$ | CMECH / Hopo / Roto |
| Grand Entrance Pivot Door | Up to 4500 mm | $\ge 3500 \text{ Pa}$ | $\ge 450 \text{ Pa}$ | $1.5 \text{--} 2.0 \text{ W/m}^2\text{K}$ | Dorma / FritsJurgens / Kin Long |
| Exterior Hinged French Door | Up to 2800 mm | $\ge 4000 \text{ Pa}$ | $\ge 600 \text{ Pa}$ | $1.3 \text{--} 1.7 \text{ W/m}^2\text{K}$ | G-U / Hoppe / KSS |
Factory Capability
Why Global Importers Partner with Veltor Window & Door
Located in Shishan Town, Nanhai District, Foshan—Veltor operates a vertically integrated production line guaranteeing project precision from shop drawing approval to site installation.
Computerized CNC Milling
Double-head precision cutting saws and 5-axis CNC machining centers process aluminum profiles within $\pm 0.2\text{mm}$ structural tolerance, ensuring perfect corner joint alignment.
Injectable Corner Crimping
Mechanical corner crimping enhanced with dual-component structural epoxy injection prevents frame sagging and eliminates water leakage at profile corner joints.
Full Trial Mock-Up Testing
Every door order undergoes 100% pre-shipment assembly on factory trial frames to verify hardware latching smoothly, dimensional accuracy, and glass alignment.
Buyer Knowledge Base
Frequently Asked Questions (FAQ) for Door Procurement
Detailed technical answers to common queries raised by international project dealers, architects, and importers.
What is the practical Minimum Order Quantity (MOQ) for custom exterior door orders?
+
Because every exterior door system is manufactured strictly to measure based on architectural elevation drawings, Veltor does not impose rigid consumer MOQ hurdles. We accommodate single-villa bespoke project orders as well as full container-load (20GP/40HQ) commercial shipments. For small orders, freight consolidation is optimized to lower per-unit logistics expense.
How do China door manufacturers ensure thermal break performance in sub-zero climates?
+
For cold climate zones (such as North America Zone 5-7 or Northern Europe), factories utilize wide multi-chamber thermal breaks (up to 34mm PA66-GF25 polyamide strips) combined with argon-filled triple glazing, double Low-E soft coatings, and warm-edge composite spacers. This engineering yields overall door $U$-factors down to $0.18\text{--}0.24 \text{ Btu/h}\cdot\text{ft}^2\cdot^{\circ}\text{F}$ ($1.0\text{--}1.3 \text{ W/m}^2\text{K}$).
Can Chinese aluminum doors comply with local building regulations (e.g., AS2047, NFRC, CE)?
+
Yes. Premium manufacturers design profiles specifically engineered to meet target regional codes. For example, systems built for Australia undergo structural deflection, air infiltration, and water penetration testing under AS2047/AS1288. Safety glass components carry SGCC (North America), SAI Global (Australia), or CE marking (Europe) certifications.
What export packaging methods are deployed to prevent damage during sea transport?
+
Doors are wrapped in 5-layer protective scratch-proof film, corner guards are attached to all profile edges, and glass sashes are packed inside fully enclosed, fumigated, steel-reinforced wooden crates. Each crate features clear labeling corresponding to project opening schedule numbers to streamline on-site sorting.
What is the average lead time from shop drawing confirmation to port delivery?
+
Standard production time is typically 25 to 35 business days following formal CAD shop drawing sign-off and deposit receipt. Specialized powder coating finishes (such as custom RAL shades or wood grain transfers) or high-spec laminated glass may add 5 to 7 days to the production matrix.
