Featured Exterior Aluminum & Glass Systems
Precision-engineered thermal break doors, sliding patio systems, bi-folds, and high-impact structural architectural glazing direct from premier Chinese manufacturers.
Executive Sourcing Guide: Selecting Top China Aluminum Glass External Door Manufacturers
The global demand for high-performance architectural fenestration has elevated China—specifically the Foshan manufacturing hub in Guangdong—to the epicentre of precision aluminum door and window production. As commercial real estate developers, facade contractors, and residential project importers seek optimal balances of thermal efficiency, acoustic isolation, structural integrity, and architectural aesthetics, navigating China's manufacturer landscape requires deep technical evaluation.
Modern exterior aluminum glass doors are no longer mere building entryways; they are complex, multi-layered envelope components responsible for solar heat gain control, hurricane impact protection, and seamless indoor-outdoor transition. Leading OEM/ODM factories in China utilize high-precision CNC machining centers, automated double-head cutting saws, continuous corner-crimping glue injection systems, and advanced powder-coating lines to meet strict international building standards including NFRC (USA), CE/EN 14351-1 (Europe), AS2047 (Australia), and CSA (Canada).
Core Metallurgy & Structural Profile Specifications
Premier Chinese manufacturers utilize primary ingot aluminum grade 6063-T5 or heat-treated 6063-T6. Unlike recycled secondary aluminum alloys which suffer from impurity inclusion and micro-cracking during stress, prime 6063-T6 alloy provides superior tensile strength (≥ 205 MPa) and yield strength (≥ 180 MPa), ensuring zero structural deflection under extreme exterior wind pressure.
Future Procurement & Technological Trends in Exterior Doors
Anticipating fenestration innovations: How thermal breaks, slim sightlines, and smart glass are reshaping commercial and luxury residential projects.
Polyamide PA66 Thermal Insulation
Transitioning from traditional pour-and-debridge polyurethane to precision-extruded PA66 GF25 (25% Glass Fiber Reinforced Polyamide) multi-cavity thermal break strips. This reduces the U-Factor of external door frames to under 1.4 W/m²K, eliminating thermal bridging in extreme cold or hot climates.
Ultra-Slim Sightline Structural Glazing
Minimalist architecture demands frame-to-glass ratios exceeding 90%. Next-generation Chinese bi-fold and sliding patio doors feature interlock sightlines as narrow as 20mm to 25mm while using heavy-duty bottom rollers rated for 400kg to 500kg per glass sash.
Hurricane Impact & Multi-Point Locks
Integration of SentryGlas (SGP) laminated safety glass combined with multi-point stainless steel 304 gear-locking mechanisms (Roto, Siegenia, CMECH, or HOPO). Rated to withstand Missile Level D impact testing and positive/negative pressure up to 5500 Pa.
Low-Carbon Recycled Metallurgy & EPD
Global buyers are demanding Environmental Product Declarations (EPD). Top manufacturers in Foshan are introducing hydro-powered recycled aluminum billets and zero-VOC Qualicoat Class 2 powder coatings to comply with LEED v4 and BREEAM green building certifications.
Smart Automation & Concealed Hardware
Motorized heavy-duty sliding doors equipped with concealed electric drives, rain sensors, smart phone app connectivity, and fingerprint/facial recognition integration directly embedded into thermal break door profiles.
Multi-Cavity Acoustic Insulation
Urban acoustic attenuation solutions featuring triple-glazed Insulated Glass Units (IGU) filled with 90%+ Argon gas, warm-edge spacers, and asymmetric glass thicknesses (e.g., 6mm + 12Ar + 5mm + 1.14PVB + 5mm) yielding STC sound ratings above 42 dB.
Architectural Exterior Door System Comparison Matrix
Before issuing procurement RFQs to Chinese suppliers, project specifiers must align system operational mechanisms with site-specific wind loads, clearance requirements, and U-Factor targets.
| System Type | Typical Profile Thickness | Glass Configuration | Thermal Performance (U-Value) | Wind Load Resistance | Target Applications |
|---|---|---|---|---|---|
| Thermal Break Pivot Entrance Door | 3.0mm - 4.0mm | 10mm + 12Ar + 10mm Toughened | 1.3 - 1.6 W/m²K | ≤ 4500 Pa | Luxury Villa Main Entry, Hotel Foyers |
| Heavy-Duty Lift & Slide Door | 2.0mm - 2.5mm | 6mm Low-E + 16Ar + 6mm Toughened | 1.1 - 1.4 W/m²K | ≤ 5500 Pa | Oceanfront Balconies, Commercial Patios |
| Accordion Bi-Folding Glass Door | 2.0mm - 2.2mm | 5mm + 14Ar + 5mm Low-E | 1.4 - 1.8 W/m²K | ≤ 4000 Pa | Restaurant Open Walls, Villa Terraces |
| NFRC French Casement Door | 1.8mm - 2.0mm | 6mm + 12Ar + 6mm Triple Silver Low-E | 0.9 - 1.2 W/m²K | ≤ 5000 Pa | High-End Residential Exterior Entrances |

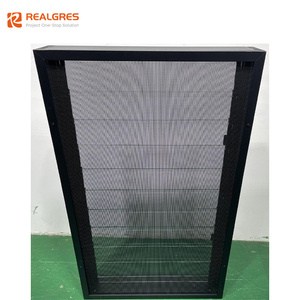

| Narrow Frame Louver System | 1.5mm - 2.0mm | 8mm / 10mm Single Toughened / Frosted | N/A (Ventilation focus) | ≤ 3000 Pa | Tropical Resorts, Utility Passageways |
Manufacturer Advantage: The Foshan Industrial Ecosystem
Sourcing directly from established factory facilities in Nanhai District, Foshan, Guangdong provides importers with significant structural supply chain advantages. Backed by state-of-the-art aluminum extrusion presses ranging from 800 to 7500 metric tons, integrated vertical anodizing lines, and direct alliances with world-class glass processors (such as CSG Holding, Xinyi Glass, and Fuyao), manufacturers can offer turnkey custom engineering at competitive factory-direct pricing.
Strict Pre-Shipment Quality Control Protocols
A reputable Chinese manufacturer implements a rigorous 5-step quality verification cycle before container loading:
- Raw Profile Inspection: Spectrometric testing of 6063-T6 alloy composition and anodizing/coat thickness measurement (Qualicoat Class 2 ≥ 60μm).
- 100% Pre-Assembly Trial Fit: Every custom door frame and sash is fully assembled on test rigs to verify corner crimp squareness, alignment, and seal tightness.
- Hardware Torque & Cycle Testing: Multi-point locks, hinges, and bottom tandem rollers are subjected to continuous cycle operation checks.
- Water Spray & Air Infiltration Benchmarking: Sample units undergo pressure-chamber testing to verify zero water ingress under simulated storm conditions.
- Reinforced Export Packaging: Full edge protection film, corner guards, glass separation pads, and fully enclosed IPPC ISPM-15 fumigated plywood crates.
Frequently Asked Questions (FAQ) for Global Importers
Direct technical answers addressing common procurement challenges, minimum order quantities, building code compliance, and export logistics.
Ready to Engineer & Import Exterior Aluminum Door Systems?
Connect directly with senior fenestration engineers to review your elevation drawings, window schedules, and project specifications. Receive factory-direct quotes and technical CAD proposals within 24 hours.
