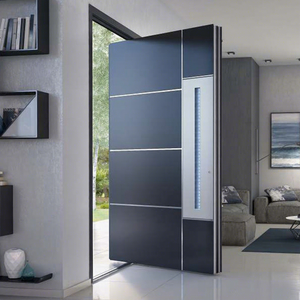

Modern Entrance Door Porte Metal Aluminum Glass Pivot Front Security Door Waterproof Thermal Insulation Porte Acier for Villa
Get a Quote

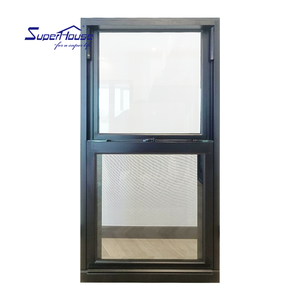

American Waterproof Aluminium Double Glass Sash Window Single Double Hunge Vertical Sliding Windows
Get a Quote

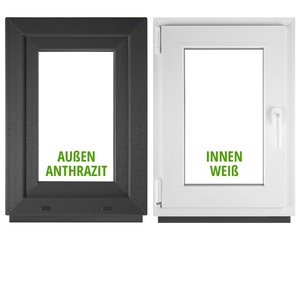

Basement Window DIN Left Outer Aluminum Anthracite White Interior Horizontal Double Glazing 32mm Heat Protection Sound
Get a Quote

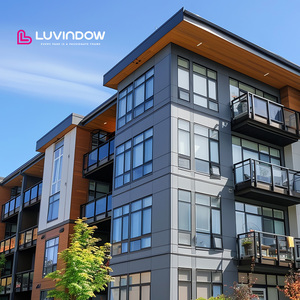

High Performance Thermal Break Aluminum Windows Double Glazed Soundproof Casement Windows For Hotel Apartment Projects
Get a Quote

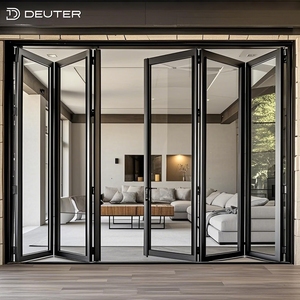

Panoramic Heavy-duty Exterior Aluminum Patio Glass Bifold Folding Door Thermal Break Wide Opening Villa Indoor Partition System
Get a Quote

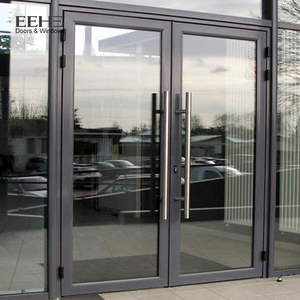

EEHE NFRC Certified Aluminum Double Swing Door Sound Insulation Commercial Patio Entrance Doors
Get a Quote
External Double Doors with Aluminium Security Mesh /glass Sliding Doors/sliding Patio Doors in Australian Standard As2047
Get a Quote1. Strategic Shift: Why Architectural Aluminium is Replacing Steel in Modern Crittall Design
The timeless aesthetic of Crittall-style fenestration—characterized by ultra-slim sightlines, geometric glazing bars, and industrial-chic minimalist frames—has dominated luxury residential and commercial architecture for over a century. Originally engineered using hot-rolled steel, traditional Crittall windows provided iconic structural geometry but presented persistent engineering challenges: severe thermal bridging, heavy dead loads requiring reinforced structural lintels, high susceptibility to rust in coastal zones, and prohibitive fabrication costs.
Today, top China aluminium Crittall windows manufacturers have engineered a technological breakthrough by combining extruded 6063-T5/T6 architectural aluminum alloy with advanced thermal-break technology. By utilizing precise CNC milling, laser-mitered corner joinery, and high-density Polyamide (PA66 GF25) thermal barriers, modern aluminium Crittall systems deliver authentic steel-look profiles while overcoming the insulation and corrosion flaws of original steel windows.
Technical Insight: Aluminum Crittall profile systems offer up to a 45% reduction in dead weight compared to traditional mild steel framing, significantly lowering structural engineering costs for high-rise facades and residential retrofits, while boosting thermal efficiency (U-values) by up to 60%.
Comparing Material Mechanics: Aluminium Crittall vs. Traditional Steel Systems
To assist project dealers, architects, and real estate developers in procurement decisions, the structural, thermal, and economic parameters between extruded thermal-break aluminum and traditional hot-rolled steel are contrasted below:
| Performance Metric | Thermal-Break Aluminium Crittall | Traditional Hot-Rolled Steel | Standard Non-Thermal Aluminum |
|---|---|---|---|
| Thermal Transmittance (U-value) | 1.1 – 1.6 W/m²K (Excellent) | 3.2 – 5.5 W/m²K (Poor Thermal Bridge) | 2.8 – 4.2 W/m²K (Moderate) |
| Frame Profile Sightline | 15mm – 28mm (Ultra-Slim) | 12mm – 25mm (Ultra-Slim) | 45mm – 75mm (Bulky) |
| Corrosion Resistance Class | C4/C5 Coastal Grade (Anodized/PVDF) | Requires Constant Repainting / Rust Risk | C3 Grade Standard Powder Coating |
| Glazing Flexibility | Double/Triple IGU (up to 38mm thickness) | Limited Single/Slim Double Glazing | Standard Double Glazing |
| Acoustic Insulation (STC) | 38 dB – 45 dB (High Noise Reduction) | 25 dB – 32 dB (Moderate) | 30 dB – 35 dB (Standard) |
| Procurement Cost Index | Cost-Effective OEM Wholesale Standard | High Fabrication & Labor Overhead | Lowest Baseline Cost |
2. Technological & Design Trends Shaping Aluminium Crittall Windows
The global demand for high-performance minimalist fenestration is pushing Chinese window factories to integrate automated production technologies with high-end surface coatings. Importers and commercial buyers should track the following four defining trends during their procurement audits:
Micro-Narrow Sightline Engineering
Next-generation profiles reduce visible vertical mullion width down to 15–20mm, maximizing interior natural light while maintaining high structural resistance to wind load pressure.
Thermally Broken PA66 GF25 Strips
Insertion of 25% glass-fiber reinforced polyamide thermal barriers isolates internal and external aluminum chambers, stopping conductive heat exchange completely.
Concealed Hardware & Multi-Point Locks
Integrating European-standard hardware channels allows multi-point locks to be completely hidden inside the sash profile, enhancing modern aesthetics and burglar protection.
AAMA 2605 Architectural PVDF Coatings
Fluoropolymer (PVDF) and fine-textured electrostatic powder coatings offer super-durable matte black finish options resistant to chalking, salt spray corrosion, and UV fading for over 25 years.
Applied vs. Interlocking Astragal Bars
Factories now offer custom stick-on (SDL - Simulated Divided Lite) or internal interlocking muntin bars, allowing flexible design configurations without sacrificing glass structural integrity.
Acoustic Laminated Double Glazing
Combinations of 6mm Low-E Tempered + 12Argon Spacer + 6mm Acoustic PVB Laminated Glass deliver studio-grade noise attenuation for urban infill architectural projects.
3. Future Procurement Trends for B2B Importers & Project Buyers
As international energy compliance codes become more stringent (such as the EU Energy Performance of Buildings Directive and North American NFRC/ENERGY STAR standards), global buyers sourcing from Foshan and major Chinese manufacturing hubs must adapt their procurement strategies. Key trends driving the market include:
A. Carbon Neutrality & Recycled Aluminium Sourcing
Global developers are requiring Environmental Product Declarations (EPD) for structural materials. Top Chinese factories are switching to low-carbon primary aluminum billet produced via hydroelectric power, as well as integrating up to 30% recycled post-industrial aluminum profiles without sacrificing tensile strength or surface finishing quality.
B. Factory-Direct BIM & CAD Shop Drawing Integration
Leading suppliers are eliminating middleman communication gaps by employing dedicated CAD/BIM engineering teams. Before cutting a single aluminum extrusion profile, factories provide detailed 3D section shop drawings, wind-load simulation metrics, and anchor installation details for architect approval.
C. Turnkey Customization & Pre-Assembled Hardware Systems
Rather than ordering unglazed aluminum frames and sourcing hardware separately, project dealers favor factory-glazed, fully assembled window units shipped with pre-installed multi-point locks, heavy-duty concealed hinges, and removable magnetic insect screens.
4. Step-by-Step B2B Sourcing & Quality Inspection Checklist
To avoid costly project delays, misaligned frame dimensions, or moisture leakage, procurement officers should enforce the following quality assurance protocols when selecting a China aluminum window manufacturer:
- Aluminum Alloy Chemical Composition Audit: Ensure the factory supplies mill test certificates proving the use of 6063-T5 or 6063-T6 primary aluminum billets rather than scrap-contaminated re-melted aluminum.
- Thermal Strip Verification: Confirm the thermal break material is Polyamide PA66-GF25 (25% glass fiber reinforced). Lower-grade PVC strips will shrink, crack, and fail under extreme temperature fluctuations.
- Glazing Seal & EPDM Rubber Gasket Inspection: Verify continuous EPDM weather-stripping seals rather than cheap TPE seals to guarantee long-term air permeability and water tightness.
- Pre-Shipment Trial Assembly: Request video proof or third-party inspection reports of trial unit assembly in the workshop to test sash clearance, hardware smoothness, and diagonal measurement tolerances (within ±1.5mm).
- Export Packaging Integrity: Require heavy-duty wooden crate packaging with corner guards, moisture barrier film, and clear frame tagging matching the architect’s window schedule opening numbers.
VELTOR Window & Door Manufacturing Capabilities
Based in Shishan Town, Nanhai District, Foshan City—the world's premier industrial hub for architectural aluminum extrusion—VELTOR delivers custom thermal-break window and door systems directly from factory floor to jobsite.
Frequently Asked Questions for Sourcing & Procurement
Get instant answers regarding order minimums, structural customization, shipping protection, and international building compliance.
What is the minimum order quantity (MOQ) for custom aluminium Crittall windows?
Because every window and door profile is engineered to exact project shop drawings, VELTOR accepts single-project orders (e.g., luxury villa builds) as well as full container loads for regional stocking dealers. We optimize crate loading to maximize container volume efficiency and minimize unit freight costs.
How do thermal break aluminum Crittall windows achieve strict U-value energy codes?
Our thermal break profiles integrate 25% glass-fiber reinforced Polyamide (PA66-GF25) insulating channels. Combined with double or triple Low-E insulated glass units (filled with Argon gas and warm-edge spacers), our systems achieve overall window thermal performance values of U-value ≤ 1.2 W/m²K (0.21 BTU/hr·ft²·°F), meeting stringent North American Title 24 and European CE energy regulations.
Can China manufacturers supply windows certified to local standards like AS2047 or NFRC?
Yes. Custom extrusion profiles are designed and structurally engineered to satisfy specific regional design pressures (DP ratings), water resistance, and air infiltration metrics. We provide official physical test reports for AS2047 (Australia), NFRC / AAMA (North America), and CE / EN 14351-1 (Europe) upon request.
What is the difference between Applied Glazing Bars (SDL) and True Divided Lites (TDL)?
Applied Glazing Bars (Simulated Divided Lites - SDL) are precision CNC-machined aluminum astragal bars mounted onto the exterior and interior glass surfaces over a continuous double-glazed unit. This provides optimal thermal insulation and water seal security. True Divided Lites (TDL) physically split the glass into small individual panes; while authentic, TDL increases thermal bridge risk and total fabrication costs.
How are large glass windows and bi-fold doors packaged for international ocean freight?
Finished windows and doors are wrapped in protective scratch-resistant film, fitted with heavy-duty corner guards, separated by shock-absorbing foam pads, and fully enclosed inside IPPC-certified fumigation-free plywood crates. Crates are clearly labeled by opening reference tags matching project architectural floor plans.
What lead time should buyers expect from shop drawing approval to port delivery?
Typical factory production takes 25 to 35 calendar days following CAD shop drawing confirmation and deposit receipt. Special powder coat colors or custom anodized finishes may require an additional 5-7 days. Shipping transit times vary by destination port (e.g., 14-18 days to US West Coast, 28-35 days to European main ports).
