Featured OEM/ODM Aluminum Net & Mesh Door Systems
Custom-engineered architectural openings manufactured directly in Foshan, China. Designed for high wind-load endurance, thermal isolation, and superior pest protection.
Custom Interior Furniture Modern Design Aluminum Frame Glass Sliding Cabinet Door for Kitchen Wardrobe
Aluminum Fold Up Windows Cost Kitchen Bar Window And Door Slide Vertical Bifold Windows For Sale

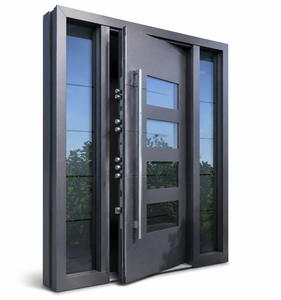

Modern Grey Aluminum Entry Door Frosted Glass Panels Aluminum Alloy Security External Front Door for Villa

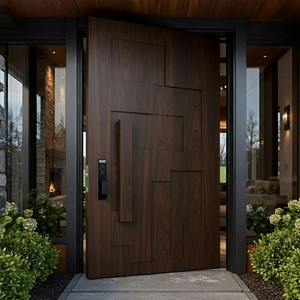

Modern Aluminum Pivot Entry Door Luxury Exterior Front Door Thermal Break Custom Size Double Glass

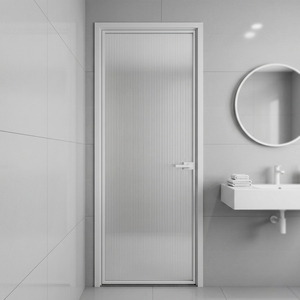

Factory Wholesale Minimalist Matte White Slim Aluminum Full Vertical Ribbed Frosted Glass Interior Door
Custom Tempered Glass Windows Aluminum Shutter Adjustable Louver for Commercial House Project

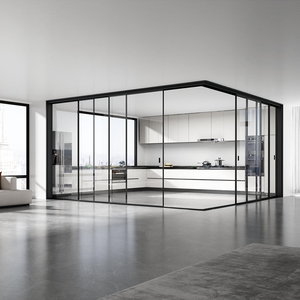

Modern Concealed Frame Aluminum Sliding Door Crittall Style Soundproof Thermal Insulation Double Glazing

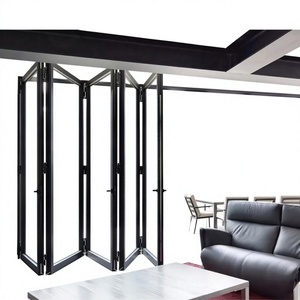

Interior Modern Foldable Aluminium Alloy Accordion Mosquito Net Door with Glass Panel System
Architectural Engineering Overview: OEM/ODM Aluminum Net & Security Screen Door Manufacturing
Modern architectural projects demand integrated fenestration solutions that harmonize aesthetic transparency, physical security, thermal optimization, and environmental protection. As premier aluminum net door manufacturers and suppliers based in Nanhai District, Foshan—China’s epicenter for architectural profile extrusion—we deliver custom OEM/ODM solutions engineered to satisfy rigorous international building codes including North American NFRS/NAFS, European CE/EN 14351-1, and Australian AS2047 standards.
The technical integration of metal mesh systems within aluminum door profiles has evolved beyond rudimentary fly screens into high-security, structural screen doors equipped with woven 304/316 marine-grade stainless steel wire cloth. Understanding the exact mechanical specifications of profile extrusions, surface finishes, and hardware locking mechanisms is crucial for project developers, wholesale distributors, and commercial contractors seeking long-term performance reliability.
1. Structural Alloy Metallurgy & Extrusion Geometry
The structural backbone of any high-performance net door lies in its extruded aluminum framing system. We utilize primary 6063-T5 and 6063-T6 aluminum alloys, precision-tempered to provide yield strengths exceeding 170 MPa. Unlike secondary remelt scrap aluminum, primary billets ensure zero structural micro-cracking during deep CNC milling and corner crimping operations.
- Wall Thickness Rigidity: Frame profiles feature structural wall thicknesses ranging from 1.4 mm to 2.0 mm, guaranteeing anti-twist stiffness even under high negative wind pressure loads.
- Thermal Break Integration: Utilizing glass-fiber reinforced Polyamide (PA66GF25) insulating strips, our thermal break net door systems create a continuous thermal barrier, significantly reducing overall frame U-values to under 1.8 W/m²K when combined with low-emissivity insulated glazing units (IGUs).
- Concealed Drainage Channels: Integrated pressure-equalized drainage slots prevent water ingress during torrential rainfall while maintaining a sleek, unobstructed frame exterior.
Technical Specification Matrix: Security Mesh vs. Accordion Fly Screen Systems
| Performance Metric | 316 Stainless Steel Security Mesh | High-Tensile 304 Stainless Net | Pleated Accordion Screen (PET/PP) |
|---|---|---|---|
| Wire Diameter / Thickness | 0.80 mm – 0.90 mm (Heavy-Duty) | 0.50 mm – 0.70 mm (Standard) | 0.18 mm – 0.22 mm Pleated Filament |
| Mesh Weave Density | 11 x 11 / 12 x 12 Mesh per Inch | 14 x 14 Mesh per Inch | 18 x 16 Micro Mesh |
| Impact Resistance (Joule) | > 500 J (Knife-Shear Resistant) | > 250 J (Impact Resistant) | Insect Protection Only |
| Corrosion Resistance | 1000h Salt Spray Passed (AASS) | 500h Salt Spray Passed (NSS) | UV & Rot Resistant Polyester |
| Primary B2B Application | Exterior Villa Security / Entry Doors | Residential Patio & Balcony Sliders | Space-Saving Interior Foldable Screens |
2. Advanced Surface Coating & Environmental Protection
Aluminum net doors operating in coastal or tropical climates are subject to intense UV radiation and airborne chloride ion degradation. To ensure color retention and surface longevity exceeding 15 years, our manufacturing facility offers three specialized surface treatment pipelines:
- Fluorocarbon (PVDF) Spray Coating: Utilizing AkzoNobel or PPG 70% Kynar 500 PVDF coatings applied in a 3-coat, 2-bake automated line. Provides maximum chemical inertness, chalking resistance, and color stability under harsh exposure.
- Electrostatic Powder Coating: Architectural grade polyester powders (minimum 60–80 micron film thickness) offering scratch resistance and vast RAL color customization, including textured matte black and modern space grey finishes.
- Hard-Coat Anodizing: Electrolytic anodizing (Class 15 and Class 25 microns) establishing a metallic oxide layer that resists abrasion while preserving the natural metallic sheen ideal for modern minimalist interior sliding glass and mesh doors.
Multi-Point Lock Security
Engineered with stainless steel multi-point gearboxes, top-and-bottom shoot bolts, and anti-lift hooks to prevent forced entry leveraging mechanical prybars.
High-Vis Clear Vision Mesh
Black powder-coated 316 wire mesh absorbs light reflection, allowing 85% visual clarity looking out while offering daytime privacy from the exterior.
Precision CNC Corner Joinery
Cast aluminum corner keys injected with two-component polyurethane structural adhesive prevent frame sagging and joint separation over time.
Future Procurement Trends in the Global Aluminum Door Market (2025–2030)
As global architectural design trends lean heavily toward open-plan living and seamless indoor-outdoor transition, the demand for high-capacity fenestration systems is evolving rapid. B2B procurement managers and project dealers must align with key emerging supply chain trends to retain market competitiveness:
A. Slim-Sightline Architectural Profiles
Traditional heavy-frame screen doors are increasingly replaced by ultra-narrow frame profiles (visible sightlines under 18mm to 25mm). Achieving structural integrity with minimalist profiles requires higher T6 temper aluminum alloys and precision mechanical corner crimping, allowing floor-to-ceiling glass and net panel heights exceeding 3.5 meters without structural deflection.
B. Integrated Dual-Track Thermal & Security Systems
Buyers are shifting away from standalone screen doors toward unified monorail, double-track, and triple-track integrated systems. These configurations combine double-glazed insulated glass panels, heavy-duty sliding screens, and retractable mosquito netting into a single outer frame, reducing installation labor costs on project sites by over 40%.
C. Motorization and Smart Home Integration
Commercial and high-end residential projects now frequently specify motorized accordion net doors and sliding security screens equipped with brushless DC motors, obstacle detection sensors, and home automation control protocols (Zigbee, Z-Wave, Matter). OEM manufacturers with customized wiring channels built directly into extrusion profiles hold a distinct advantage.
Why Partner With Our Foshan Production Facility
Direct factory-to-business manufacturing, comprehensive engineering support, and stringent quality control protocols engineered for global trade efficiency.
Custom Extrusion Tooling & CAD Prototyping
Our in-house die-making workshop develops custom aluminum profiles based on buyer CAD/BIM specifications within 10 to 14 days, offering tailored solutions for unique architectural facades.
Rigorous 100% Pre-Shipment Quality Control
Every order undergoes dimensional tolerance checks, diagonal alignment tests, coating thickness measurements, and smooth hardware cycle testing prior to export packing.
Export-Grade ISPM 15 Wooden Crating
Finished frames and pre-hung door units are wrapped with protective anti-scratch film, edge guards, and packed inside fully enclosed fumigated plywood crates for safe ocean transit.
B2B Procurement & Technical FAQ
Essential answers for project managers, importers, architectural specifiers, and hardware distributors.
Because every architectural project requires specific opening dimensions and finish customization, we support flexible MOQ terms. For custom profile extrusions and private label hardware, our standard MOQ starts at 50 square meters or container-consolidated mixed orders. Single project orders for commercial development projects are also accepted based on shop drawing evaluations.
Grade 316 stainless steel contains 2-3% Molybdenum, which dramatically enhances resistance to pitting corrosion caused by airborne sodium chloride in coastal regions compared to standard 304 steel. Coupled with our electrostatically applied black epoxy resin powder coat, our 316 security screen mesh successfully passes 1000-hour Acidified Synthetic Sea Salt (AASS) spray testing without structural oxidation.
Yes. Our thermal break aluminum frame series utilize multi-cavity polyamide insulating strips (PA66GF25) paired with double or triple insulated glass units (featuring Argon gas fill and warm-edge spacers). These configurations allow our door assemblies to meet stringent U-factor requirements under North American NFRC ratings and European Energy Efficiency Directives.
To provide a detailed itemized estimate, our engineering team requires: 1) Architectural window/door schedules or CAD opening dimensions; 2) Frame color and coating preference (e.g., Powder Coating, PVDF, Anodized); 3) Glass and net mesh specification (e.g., 316 security mesh vs. accordion fly net); and 4) Target hardware branding (German Siegenia/HOPO or custom OEM factory hardware).
Once final CAD shop drawings are signed off and the deposit is confirmed, standard fabrication lead time is 25 to 35 business days depending on surface finish complexity (custom PVDF colors or specialized woodgrain transfers may add 5 days). We issue detailed production milestone schedules with weekly photo and video progress reports.
Ready to Request Engineering Shop Drawings & Project Pricing?
Contact our Foshan technical sales team today. We offer direct factory quotes, custom sample kits, and complete CAD/BIM drawing support for global project tenders.
