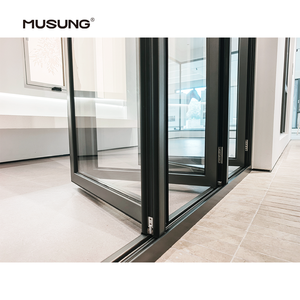

Standard Outdoor Aluminum Folding Door Double Tempered Glass Insulated Waterproof Patio Balcony Folding Doors
Jalouplus Modern Vertical Opening Aluminium Shutter Frame Window Louver Durable Aluminum Alloy for Hotel Use Philippines Market
Modern Aluminum Alloy Sliding Windows And Doors With Tempered Glass Soundproof Exterior Use

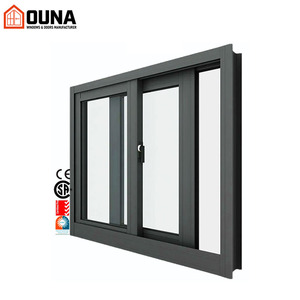

OUNA Windproof Double Glazed Aluminium Windows Hurricane Impact Proof Low-E Glass Aluminum Sliding Window With Mosquito Net
Industry Whitepaper: Technical Architecture of OEM Aluminium Flush Windows
An in-depth analysis of frame flushness, structural integrity, thermal breaking mechanisms, and supply chain logistics for B2B buyers and developers.
01 Understanding the Mechanical Superiority of Flush Profile Engineering
In high-end architectural fenestration, custom OEM aluminium flush windows represent the pinnacle of modern structural minimalism combined with rigorous engineering performance. Unlike traditional overlap casements—where the window sash overlaps the outer frame by 8mm to 12mm—a flush sash system aligns 100% coplanar with the outer frame profile on both the exterior and interior faces. This creates an uninterrupted, ultra-clean aesthetic plane favored by contemporary architects and luxury property developers globally.
Achieving true flush coplanarity without compromising wind load resistance (ASTM E330) or water tightness (ASTM E331) requires extreme structural tolerances during profile extrusion, CNC machining, and corner assembly. At Veltor Window & Door Co., Ltd. (based in Foshan, China's premier industrial aluminum manufacturing cluster), our custom OEM flush window systems utilize precision-machined 6063-T5/T6 billet extrusions, structural EPDM gaskets, and multi-point concealed friction hinges to deliver flawless structural alignment with exceptional thermal and acoustic performance.
| Engineering Parameter | Standard Non-Thermal Flush Profile | High-Performance Thermal Break Flush Profile | Custom Ultra-Slim Structural Flush Profile |
|---|---|---|---|
| Aluminium Alloy Standard | GB/T 5237-2017 Grade 6063-T5 | GB/T 5237-2017 Grade 6063-T6 Structural | High-Tensile 6060-T66 Custom Billet |
| Profile Wall Thickness | 1.4mm – 1.8mm | 1.8mm – 2.2mm (Heavy-Duty B2B Grade) | 2.0mm – 3.0mm Reinforced Core |
| Thermal Insulation Strip | N/A | PA66GF25 Multi-Chamber (24mm – 34mm) | Aero-gel Filled Polyamide PA66 (39mm) |
| Glazing Compatibility | 5mm + 12A + 5mm Tempered Double Glazed | 6mm + 16Ar + 6mm Low-E Triple Glazed | 8mm + 20Ar + 8mm Structural Laminated IGU |
| Water Tightness (Pa) | Class 4 (300 Pa) | Class 9A / E750 (750 Pa) | ASTM E331 Compliant (≥ 1000 Pa) |
| Acoustic Insulation (Rw) | 32 dB – 35 dB | 38 dB – 42 dB | 45 dB Soundproof Acoustic Glass Core |
| Surface Finish Options | Standard Powder Coating (60-80µm) | Qualicoat Class 2 Fluorocarbon (PVDF) | Anodized 25µm / Micro-Arc Oxidation |
Enterprise Advantages: Direct Factory Manufacturing & Quality Control
Why international builders, facade contractors, and project dealers partner with Veltor Window & Door Co., Ltd.
Foshan Supply Chain Hegemony
Located in Nanhai District, Foshan, our plant sits at the core of global aluminum extrusion, powder coating, and hardware forging networks. This allows us to source raw 6063-T6 billets and premium hardware with zero supply chain friction.
5-Axis CNC Precision Machining
Flush window frames require zero-margin error. Our automated double-head 45-degree cutters and 5-axis CNC routing centers guarantee seamless miter joint connections, concealed drainage routing, and exact hardware pocket milling.
100% Pre-Shipment Trial Assembly
Every single custom order undergoes shop drawing matching, hardware torque testing, diagonal measurement checking, and water pressure box validation before export crating.
Export-Grade Wooden Crating
To protect delicate flush sashes during sea freight transit, units are wrapped in anti-scratch protective film, corner-guarded, and loaded into fumigated solid-wood crates labeled by exact opening numbers.
Strategic Future Procurement Trends for B2B Importers
Key technological shifts shaping global window and door procurement from 2025 through 2030.
A 1. Ultra-Slim Sightlines and Frame Invisibility
The global luxury architectural market is rapidly moving towards "invisible frame" fenestration. Future flush window designs demand frame face widths under 30mm, allowing the exterior masonry or curtain wall cladding to cover the outer frame entirely. This results in an all-glass exterior appearance while maintaining fully operational tilt-and-turn or casement mechanics internally. OEM manufacturers capable of extruding high-wall-thickness ultra-slim profiles will capture the top-tier project sector.
B 2. Stringent Net-Zero Energy Performance Standards
With regulations like Europe’s EPBD directive and updated North American Energy Star v7 guidelines, building codes now mandate window U-values below 0.8 W/m²K. B2B importers must pivot procurement strategies toward thermal break flush windows equipped with 34mm+ multi-chamber polyamide strips, warm-edge silicone spacers, and triple-pane argon-filled Low-E glass units. Sourcing non-thermal profiles for exterior residential envelope applications will face increasing regulatory restrictions.
C 3. Integration of Smart Actuators & Concealed Automation
Smart building automation (BMS integration) is transitioning from commercial skyscrapers to upscale residential villas. Modern custom flush windows must incorporate micro-motor concealed chain actuators directly inside the sash profile depth. This enables automated rain-sensor closure, voice-controlled ventilation, and synchronized HVAC climate optimization without visible surface-mounted machinery disrupting the flush sash optics.
D 4. Low-Carbon "Green Aluminium" Sourcing & Circularity
Corporate ESG mandates require project developers to calculate embedded carbon across building materials. Leading OEM factories are shifting to primary aluminum smelted using hydroelectric power or utilizing recycled post-consumer scrap (up to 75% recycled content) to lower carbon intensity from ~18kg CO2/kg Al to under 4kg CO2/kg Al. Importers offering verified Environmental Product Declarations (EPD certificates) gain a crucial competitive advantage in public tenders.
Global Industry Development Trends: Fenestration Evolution
Macro-level transformations driving manufacturing technology, material science, and design philosophies.
Transition to Structural Silicone Glazing (SSG)
Traditional mechanical glass bead retaining is increasingly replaced by structural silicone bonding (Dow Corning / Sikasil). This technique transfers wind load pressure evenly across the perimeter while maintaining a pristine exterior glass edge on flush casements.
High-Durability Surface Coatings (AAMA 2605)
Coastal urban developments demand extreme corrosion resistance. Standard powder coats deteriorate within 5-7 years under ocean spray. OEM factories are adopting hyper-durable PVDF fluorocarbon coatings capable of passing 3,000-hour salt spray corrosion testing.
Modular Off-Site Prefabrication
To counter soaring job-site labor costs in North America, Europe, and Australia, window assemblies are being shipped as pre-assembled, factory-glazed sub-frames with integrated nailing fins, saving up to 40% on installation time.
Ready to Streamline Your OEM Aluminium Window Sourcing?
Partner directly with Foshan's leading custom fenestration manufacturer. Send us your architectural drawings, window schedules, or custom profile specifications for an immediate engineering assessment and competitive wholesale quotation.
Frequently Asked Questions (FAQ) for Global Buyers
Detailed technical answers addressing common OEM manufacturing, compliance, and logistics queries.
Partner with Foshan's Premier OEM Fenestration Factory
Upgrade your building envelope sourcing with high-precision aluminum flush window systems, dedicated engineering drawing support, and factory-direct pricing.
