Featured Wholesale Aluminum Window & Door Series
Factory-direct engineering solutions optimized for residential villas, high-rise developments, and commercial architectural projects globally.
1. Enterprise Infrastructure & Foshan Architectural Aluminum Ecosystem
As a premier China wholesale aluminum casement door factory and exporter, Veltor Window & Door Co., Ltd. operates at the core of the world's most sophisticated architectural aluminum industrial cluster in Nanhai District, Foshan, Guangdong. Fenestration engineering requires absolute control over metallurgical composition, extrusion tolerances, polymer thermal breaks, and structural glass glazing integration. By controlling every stage of production—from raw 6063-T5 profile extrusion to computerized precision CNC machining—our manufacturing matrix establishes benchmark standards for international project procurement.
Our factory integrates multi-axis German-engineered double-head cutting saws and automated CNC machining centers capable of milling hinge recesses, lock mortises, and weeping drainage slots with tolerances within ±0.2 mm. This mechanical precision guarantees that multi-point locking systems, heavy-duty friction stays, and dual EPDM weather seals align with absolute airtightness and water tightness across multi-story facades.
2. Technical Deep-Dive: Thermal Break Mechanics & Structural Glazing
The thermal performance of modern aluminum casement doors hinges on breaking the conductive path of metal frame profiles. Uninsulated aluminum exhibits a thermal conductivity ($k$) of approximately $200 \text{ W/m}\cdot\text{K}$, creating severe thermal bridging, energy loss, and condensation risk in northern climate zones.
PA66GF25 Polyamide Strips
We utilize precision-extruded Polyamide 66 reinforced with 25% glass fiber (PA66GF25). This composite matches the thermal expansion coefficient of aluminum ($\alpha \approx 2.3 \times 10^{-5} /\text{K}$), preventing delamination during extreme temperature fluctuations between -30°C and +80°C.
GFRP Thermal Insertion
For passive house efficiency, selected casement lines integrate Glass Fiber Reinforced Polymer (GFRP) multi-cavity insulation profiles. GFRP offers a low thermal conductivity ($k \approx 0.3 \text{ W/m}\cdot\text{K}$), drastically driving down system overall U-factors ($U_w$).
Acoustic & Impact Glazing
Double and triple Insulated Glass Units (IGU) incorporating Low-E soft coatings, warm-edge composite spacers, and 90%+ Argon gas fill reduce heat transfers while achieving sound dampening values up to STC 42 dB.
In hurricane-prone coastal regions such as Florida, the Caribbean, and Australia, our casement doors feature structural laminated glass units engineered with SentryGlas® (SGP) or high-viscosity PVB interlayers. Under missile impact testing (ASTM E1996 / AS2047 cycle testing), the exterior pane may fracture, but the resilient interlayer preserves structural boundary integrity under cyclonic wind pressures exceeding 5000 Pascals.
3. Global Procurement Trends & Engineering Shifts (2025–2030)
International fenestration procurement is undergoing a paradigm shift driven by stringent municipal carbon codes, architectural demands for maximal daylighting, and supply chain digitization. B2B buyers, commercial developers, and project importers must align their sourcing strategies with four primary macro-trends:
1. Ultra-Slim Sightline Minimalist Systems
Architects are replacing heavy structural frames with ultra-narrow sightline profiles (interlock widths under 25 mm) and fully concealed hinges. These systems require high-moment-of-inertia aluminum alloys to support heavy triple-glazed panels weighing up to 400 kg per door leaf.
2. Strict Decarbonization & Embodied Carbon
Global developers demand Environmental Product Declarations (EPD) and low-carbon extruded aluminum. Utilizing hydro-powered or recycled post-consumer aluminum scrap reduces profile embodied carbon from $18 \text{ kg CO}_2/\text{kg Al}$ down to under $4 \text{ kg CO}_2/\text{kg Al}$.
3. Smart Building Actuation Integration
Next-generation casement and awning doors incorporate hidden motorization, smart sensor arrays for automated rain/wind closure, gas-strut pass-through mechanisms, and biometric access controls natively wired through the multi-point locking gear.
4. Technical Performance & Specification Matrix
The table below provides a comprehensive engineering baseline comparing different aluminum casement door and window configurations manufactured at our Foshan facility. Use these parameters to cross-reference with local building codes (NFRC, AS2047, EN 14351-1):
| System Category | Profile Alloy & Wall Thickness | Thermal Insulation Type | Glazing Specification | Thermal Rating ($U_w$) | Wind Load Resistance | Water Tightness |
|---|---|---|---|---|---|---|
| GFRP Impact Villa Casement | 6063-T6 / 2.0mm - 2.5mm | GFRP Inserted + PA66GF25 | 6mm Low-E + 12Argon + 6mm Laminated (SGP) | 1.1 – 1.4 W/m²K | Class P3 (≥ 5000 Pa) | 700 Pa |
| PHI Certified Wood-Alu System | Alu Outer + Solid Timber Inner | Multi-Cavity PA66 Strip + Cork | 5mm Low-E + 16Ar + 5mm + 16Ar + 5mm Low-E | 0.79 – 0.95 W/m²K | Class C5 (3000 Pa) | 600 Pa |
| Gas-Strut Flip Awning Door | 6063-T5 / 2.0mm Heavy-Duty | Polyamide PA66 Thermal Break | 5mm Tempered + 12A + 5mm Clear | 1.8 – 2.2 W/m²K | 2500 Pa | 450 Pa |

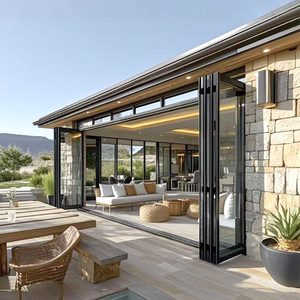

| NFRC Exterior Folding Patio Door | 6063-T5 / 2.2mm Profile | Dual PA66 Strip Insulation | 6mm Low-E + 15Argon + 6mm Tempered | 1.4 – 1.7 W/m²K | 3500 Pa | 500 Pa |

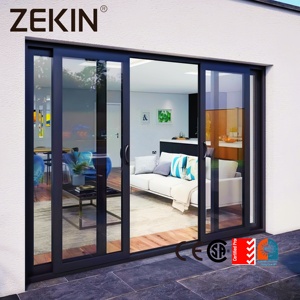

| Heavy-Duty Hurricane Sliding Door | 6063-T6 / 2.5mm - 3.0mm | Reinforced Thermal Break | 6mm + 1.52PVB + 6mm Laminated Double IGU | 1.3 – 1.6 W/m²K | Class P3 (5500 Pa) | 750 Pa |
5. Quality Assurance, OEM Capabilities & Global Compliance
Veltor Window & Door Co., Ltd. provides complete end-to-end manufacturing oversight tailored specifically to global distributors, general contractors, and fenestration project dealers. Exporting architectural joinery requires strictly audited manufacturing operations to prevent job-site failures:
Custom CAD Shop Drawings
Every contract begins with full technical shop drawing generation—detailing frame elevations, anchor bracket locations, flashing details, glass build-ups, and wind-load calculations before raw material cutting commences.
100% Pre-Shipment Inspection
Our dedicated quality control engineers conduct 100% pre-assembly inspection: dimensional checks, diagonal tolerance verify (< ±1.5mm), hardware torque testing, EPDM gasket corner vulcanization checks, and water tightness spray testing.
Export Fumigated Wooden Crating
Products are wrapped in anti-scratch protective film, fitted with impact-resistant corner guards, separated by rubber foam spacers, and sealed inside fully enclosed fumigated plywood crates labeled by floor and opening tag numbers.
6. Frequently Asked Questions (FAQ) for Overseas Importers & Developers
Partner directly with China's Premier Aluminum Door Factory
Need exact engineering drawings, custom aluminum profile thermal estimates, or direct wholesale pricing for your upcoming project portfolio?
Get Catalog
