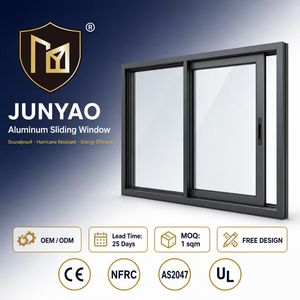

Hurricane Impact Aluminum Sliding Window CE NFRC AS2047 UL Certified 6063-T5 Waterproof Grade 4 OEM ODM Residential House

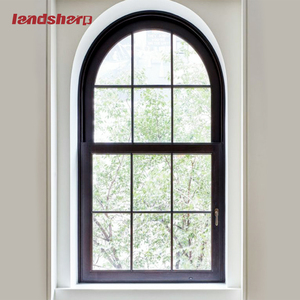

Landsharp Double Glazed French Casement Windows Thermal Break Aluminum arched window Glass Door Home Use
ZEKIN Customized Double Glazed Tempered Aluminium Glass Casement Windows Modern Swing Louver for Living Room Thermal Break
Architectural Paradigm Shift: The Rise of Aluminium Pivot Entrance Systems
An engineering insight into structural load calculation, space optimization, and modern architectural aesthetics
Modern architectural design has moved aggressively toward oversized, grand entrances that establish an immediate statement of prestige and technical sophistication. In luxury residential villas, high-end commercial headquarters, and hospitality developments, traditional side-hinged doors are rapidly being replaced by Aluminium Pivot Front Doors. Unlike standard butt hinges attached to side jambs, pivot systems transfer the weight of massive door leaves directly to the floor substrate using heavy-duty top and bottom pivot hinges.
This structural load transfer mechanism eliminates frame sag and enables door dimensions impossible with conventional hardware. Premium Chinese manufacturers now regularly engineer pivot doors reaching heights of up to 6 meters and widths exceeding 2.5 meters, carrying leaf weights over 1,000 kg with effortless, feather-light opening kinetics.
Structural Weight Distribution
Floor-anchored heavy-duty pivot spindles distribute thousands of Newtons of load downwards rather than pulling laterally on vertical door frames, preventing frame warp over decades of operation.
Thermal & Acoustic Barrier
Incorporating multi-chambered thermal break aluminum profiles with PA66 polyamide insulating strips reduces thermal bridges, achieving U-values down to 1.2 W/m²K and STC sound insulation over 42 dB.
Smart Access Integration
Seamlessly host biometric fingerprint readers, 3D facial recognition cameras, motorized multi-point locks, and home automation integration directly into extruded aluminum stiles.
Technological Evolution & Material Engineering Standards
Decoding alloy selection, surface treatments, perimeter sealing, and structural wind-load performance
When sourcing aluminium pivot doors from Chinese manufacturers, project managers, importers, and architectural specifiers must evaluate the underlying material engineering to guarantee long-term operational durability and energy compliance. The technical superiority of export-grade pivot systems lies in four fundamental core pillars:
1. Architectural Alloy Specification (6063-T5 vs. 6063-T6)
High-end pivot door extrusions utilize high-purity 6063-T5 or T6 grade aluminum alloys. The T6 heat-treatment temper provides elevated tensile strength (exceeding 205 MPa) and yield strength (exceeding 180 MPa), ensuring that large-format profiles resist structural deflection under dynamic hurricane wind pressures (DP values up to +80/-80 psf).
2. Advanced Surface Finishes & Weathering Resistance
Exterior front doors undergo severe atmospheric exposure. Chinese wholesale exporters apply multi-stage surface treatments compliant with international standard AAMA 2605. Finishes include PVDF (Fluorocarbon) coatings with 70% Kynar 500 resin content, anodic oxidation (up to 25 microns), and Italian heat-transfer wood grain effects. These treatments provide immunity against UV degradation, salt spray corrosion (C5-M marine environment standard), and physical abrasion.
3. Perimeter Air & Water Tightness Mechanics
Historically, pivot doors faced challenges regarding air permeability and water infiltration due to rotational clearance gaps at the top and bottom. Modern engineered solutions utilize automatic drop-down bottom acoustic sweeps, dual-density EPDM gaskets, and magnetic perimeter seals. When the door closes, mechanical plunger pins deploy heavy-duty rubber compression gaskets against the threshold, securing a watertight seal up to 750 Pa.
| Performance Standard | Aluminium Pivot Door (Thermal Break) | Traditional Wooden Entrance Door | Standard Steel Security Door |
|---|---|---|---|
| Structural Load Bearing | Up to 1,000 kg via floor spindle system | Limited to 150 kg (Jamb Stress) | Up to 300 kg (Frame Stress) |
| Thermal Conductivity (U-Value) | 1.2 – 1.8 W/m²K (PA66 Strip + Low-E IGU) | 2.2 – 3.2 W/m²K (Susceptible to warping) | 2.8 – 4.5 W/m²K (High thermal bridging) |
| Dimensional Stability | Zero warping, swelling, or thermal expansion distortion | High risk of swelling under moisture exposure | Risk of corrosion at welded joints over time |
| Maximum Clear Opening Width | Up to 3,000 mm single leaf | Up to 1,200 mm single leaf | Up to 1,400 mm single leaf |
| Maintenance & Service Life | 50+ Years (Zero routine maintenance) | Frequent refinishing & seal replacement | Periodic repainting & rust prevention |
Require Custom CAD Drawings or Technical Project Quotations?
Partner directly with Foshan's premier engineering team. We convert architectural blueprints into verified structural shop drawings and provide comprehensive OEM/ODM trade pricing.
Future Procurement & Global Sourcing Trends (2025–2030)
Strategic insights for overseas distributors, project developers, and building material importers
Direct Factory OEM/ODM Customization
Global procurement is bypassing intermediary trading companies. Importers collaborate directly with Foshan factories via cloud-based CAD/BIM approvals, securing 30-40% cost efficiency while enforcing custom profile extrusion requirements.
Harmonized Global Certification
Sourcing standards require compliance across multiple regions. Leading Chinese manufacturers now deliver unified structural testing validated by NFRC (North America), AS2047 (Australia), CE EN 14351 (Europe), and CSA (Canada).
Decarbonization & Green Aluminum
ESG compliance is shaping door procurement. Buyers prioritize low-carbon recycled aluminum profiles processed via hydro-electric energy, matching LEED gold and BREEAM green building specifications globally.
Foshan Industrial Cluster & Veltor Manufacturing Strengths
Unrivaled supply chain integration, precision CNC machining, and rigorous export quality control
Located in Nanhai District, Foshan City, Guangdong Province—the epicenter of global architectural aluminum extrusion and hardware innovation—our manufacturing ecosystem delivers end-to-end quality assurance. From raw ingot casting to final export crating, every production stage operates under certified ISO 9001 quality management systems.
1. Precision German CNC Machining
Utilizing multi-axis CNC machining centers and double-head digital cutting saws, frame miters achieve 0.05mm dimensional tolerances, ensuring flawless joint alignment and zero water penetration.
2. 100% Pre-Shipment Trial Assembly
Every custom pivot door undergoes full pre-assembly in our workshop. Technicians calibrate pivot hardware smooth movement, inspect electronic lock mortises, and test laser squareness prior to export packing.
3. Heavy-Duty Export Logistics Packaging
Finished units are protected with non-scratch protective film, wrapped in corner guards, and enclosed in fully enclosed, IPPC-stamped fumigated wooden crates labeled by opening tag number for rapid jobsite installation.
