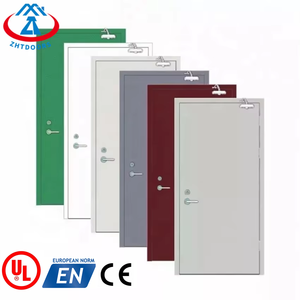

Standard 1.5 Hours Interior Fire Rated Doors Fire Proof Door Factory In Guangzhou
Architectural Procurement Analysis
1. Executive Summary & The Evolution of Architectural Aluminum Pocket Doors
In modern high-end residential, hospitality, and commercial architecture, space optimization combined with seamless indoor-outdoor transitions has transformed the fenestration landscape. **Aluminum pocket door systems**—engineered to slide smoothly into a hidden wall cavity—represent the pinnacle of functional space planning. Unlike standard surface-mounted sliding doors or traditional swing doors that consume valuable floor area, premium pocket door systems achieve 100% clear opening widths while maintaining rigorous structural integrity and acoustic insulation.
China, specifically the **Foshan industrial hub in Guangdong Province**, has evolved into the world's epicenter for architectural aluminum innovation. Home to advanced profile extrusion lines, multi-axis CNC milling centers, surface treatment facilities, and specialized hardware testing laboratories, top-tier Chinese manufacturers now deliver custom pocket door systems that rival European premium brands in performance while offering superior supply chain agility and OEM flexibility.
Information Gain Metric: Standard sliding doors require a fixed panel that permanently blocks 50% of the wall opening. Premium aluminum pocket door assemblies engineered in Foshan utilize heavy-duty split-stud cavity frameworks and top-hung trolley tracks capable of carrying up to 300kg per sash, achieving zero floor obstruction and complete visual integration.
Market Intelligence
2. Key Future Sourcing Trends for B2B Importers & Contractors (2025–2030)
Global procurement teams, real estate developers, and architectural specifiers face shifting regulatory compliance standards, energy codes, and design preferences. When evaluating aluminum pocket door factories in China, buyers must align with five macro sourcing trends shaping the industry:
Flush Threshold & Universal Accessibility
Demand for ADA-compliant zero-step transitions has made recessed floor tracks and magnetic pop-up bottom seals standard specifications for commercial and luxury residential projects.
Thermal-Break Cavity Integration
Legacy pocket doors suffered from severe thermal bridging inside wall cavities. Modern designs integrate Polyamide PA66GF25 thermal barrier strips to maintain low U-factors even when stowed.
Smart Motorization & Maglev Drives
Integration of magnetic levitation linear motors allows silent, contact-free automatic operation via smart home systems, RFID sensors, and commercial access controls.
Acoustic Isolation Engineering
With pocket doors increasingly installed in luxury suites and executive boardrooms, multi-layer acoustic glass and perimeter drop-seals now deliver sound transmission class (STC) ratings exceeding 40 dB.
R&D Innovations
3. Product Development Trends: Structural Pocket Cavities & Hardware Engineering
A pocket door is only as reliable as its internal cavity framing and hardware track assembly. Leading Chinese manufacturers are moving away from timber-framed cavities toward engineered all-aluminum structural cassette systems.
A. High-Rigidity Aluminum Pocket Cassettes
Traditional wall cavities often suffer from wall flexing, drywall cracking, and sash binding over time. Modern Foshan factories manufacture prefabricated, modular aluminum studs interconnected with cross-bracing channels. These cassette frames accommodate standard 75mm, 100mm, and 125mm stud depths, allowing drywall or stone cladding to mount directly onto the aluminum cage without structural deflection.
B. Heavy-Duty Top-Hung Trolley Hardware
Because pocket door sashes are fully suspended to eliminate bottom track debris accumulators, top roller carriages are critical failure points. Leading systems feature:
- Stainless Steel Ball Bearing Rollers: Encased in high-wear nylon or POM wheel rims for vibration-free sliding.
- Dual-Direction Soft-Closing Dampers: Hydraulic or pneumatic dampening systems that catch the sash during the final 100mm of travel, preventing slam impact at both fully open and closed positions.
- 3D Adjustment Mechanisms: Top hangers allowing vertical (±5mm) and lateral alignment adjustments after drywall installation via access ports in the header trim.
B2B Technical Specification Matrix: Pocket Door Configurations
| System Series | Frame Profile Material | Max Sash Weight | Glazing / Infill Spec | Acoustic & Thermal Target | Recommended Application |
|---|---|---|---|---|---|
| Ultra-Slim Minimalist Pocket | 6063-T6 Aluminum (16mm Sightline) | 160 kg per sash | 8mm / 10mm Toughened Glass | STC 32 dB / Single Interior Seal | Interior Kitchens, Walk-in Closets, Ensuite Bathrooms |
| Thermal Break Exterior Pocket | 6063-T6 / PA66 Polyamide Strip | 250 kg per sash | 5mm+12Ar+5mm Low-E Insulated Glass | U-Value ≤ 1.6 W/m²K | STC 38 dB | Patio Doors, Villa Verandas, Coastal Resorts |
| Heavy-Duty Acoustic Glass Pocket | Reinforced Structural Alloy (3.0mm wall) | 300 kg per sash | 6mm+1.52PVB+6mm Laminated Acoustic | STC 42 dB / Perimeter Drop Seals | Executive Boardrooms, Hotel Suite Partitioning |
| Fire-Rated Aluminum Pocket | Steel Composite Reinforced Core | 200 kg per sash | 12mm Ceramic Fireproof Glazing | EI 60 / EI 90 Fire Resistance | Commercial Corridors, Hotel Fire Compartments |
Factory Audit Guide
4. Evaluating China's Top Factories: Manufacturing Capabilities & Quality Control
When sourcing custom architectural aluminum pocket doors from China, establishing the manufacturer's operational maturity is crucial for risk mitigation. High-volume manufacturers located in Foshan differentiate themselves through end-to-end quality assurance systems.
Precision CNC Profile Fabrication
5-axis CNC machining centers perform lock-pocket milling, drain hole routing, and corner mitering with sub-millimeter tolerances, ensuring seamless frame joins and precise hardware placement.
Surface Finish Excellence
In-house anodizing lines (up to 25 microns) and Qualicoat-certified fluorocarbon (PVDF) powder coating guarantee superior corrosion resistance against coastal salt spray and UV degradation.
Pre-Shipment Trial Assembly
Every custom pocket door unit undergoes 100% factory pre-assembly, checking track smooth-sliding metrics, soft-closer calibration, and sash squareness before crating.
Factory Inspection Protocol: Premium suppliers provide video audit verification, structural CAD/BIM drawing approval stages prior to production, and full traceability reports covering raw aluminum alloy chemical compositions (ISO 9001 compliance).
Procurement Knowledge Base
5. Comprehensive B2B Purchasing FAQ: Aluminum Pocket Doors
Answers to critical questions asked by global importers, wholesalers, project managers, and general contractors during the sourcing phase:
Q1: What wall cavity thickness is required for an aluminum pocket door?
For single-glass interior pocket doors, a minimum finished cavity wall thickness of 100mm (utilizing a 75mm stud frame) is typical. Double-glazed thermal-break exterior pocket doors require finished wall thicknesses between 150mm and 220mm, depending on sash thickness and multi-track cavity requirements.
Q2: How do factories handle maintenance access for hidden track hardware?
Top Foshan manufacturers design pocket frames with removable jamb covers and header trim plates. This engineering feature allows top rollers, soft-closing dampers, and stoppers to be adjusted or replaced without damaging finished drywall or surrounding wall tiles.
Q3: Can pocket door systems meet exterior hurricane and water-tightness standards?
Yes. Exterior-grade aluminum pocket doors incorporate multi-stage weather stripping, heavy-duty interlocks with internal rubber gaskets, and stepped drainage sub-sills. When properly installed, certified systems meet high wind load (ASTM E330) and water resistance (ASTM E331) criteria.
Q4: What is the standard Minimum Order Quantity (MOQ) and lead time for factory-direct orders?
While standard MOQs start at 10 to 20 units for stock profile series, custom project orders (built to specific window schedules) are regularly accepted. Production lead times range from 20 to 35 days following shop drawing confirmation and deposit receipt.
Q5: How are fragile glass pocket doors protected for ocean freight transport?
Finished units are packed in fully enclosed fumigated plywood crates. Profile frames are wrapped in anti-scratch protective film and foam corner guards, while glass panels are separated by cork pads and secured against shifting inside heavy-duty crates labeled by project opening code.
Project Execution
6. Streamlining Your Import Workflow from Foshan Factories
To ensure project execution without site delays or costly retrofits, B2B procurement managers should follow a standardized five-stage workflow when working with Chinese aluminum pocket door manufacturers:
- Window & Door Schedule Submission: Provide structural rough opening sizes, wind-load ratings, glass performance requirements (U-factor, SHGC, STC), and surface finish preferences.
- Engineering CAD/BIM Approval: Review detailed cross-sectional shop drawings provided by factory engineers, checking head track details, jamb interface, and floor threshold conditions.
- Hardware & Sample Verification: Inspect corner profile samples, anodizing/powder coat swatches, and hardware operational cycles prior to full production runs.
- In-Process Quality Audits: Request video inspection logs during CNC cutting, glazing, and pre-shipment trial assembly.
- Consolidated Logistics Management: Coordinate with freight forwarders for container loading optimization, ensuring crates are sequenced for logical unloading on site.
