Featured Aluminium Stacking & Bi-Fold Door Series
Direct factory supply featuring thermal break structural integrity, multi-point lock security, and certified heavy-duty weather performance.
APRO Modern Aluminum Bifold Swing Folding Door
- Thermal Break 6063-T5 Profile
- Concealed Hinge & Rollers
- Double Glazed Tempered Glass
Outdoor Exterior Aluminum Accordion Patio Door
- Ultra-Slim Interlock Sightlines
- Flush Threshold ADA Track
- AAMA 2604 Powder Coating
Florida Approved Exterior Patio Glass Stack Door
- Hurricane Impact Rated (DP60)
- 10-Year Comprehensive Warranty
- German Hardware Integration
NFRC Certified Large View Glass Bifold Door
- NFRC Energy Performance Rated
- Low-E Argon Gas Filled Glass
- Quad-Gasket Weather Seal
Panoramic Multi-Panel Stacker Door with Fly Screen
- Multi-Track Telescopic Sliding
- Integrated Stainless Fly Screen
- Heavy-Duty Roller (300kg Load)
Villa Balcony Partition Aluminum Accordion Door
- Acoustic Insulation (STC 42dB)
- Anodized Black Frame Finish
- Custom Corner Stacking Option
Terrace Waterproof Stacking Double Glazed Door
- High-Sill Water Tightness Design
- 5mm+12Ar+5mm Tempered Glass
- Custom Size Shop Drawings
Heavy Duty Thermal Break Multi-Panel Bi-Fold Door
- PA66 Nylon Thermal Barrier
- Top-Hung Smooth Glide Mechanism
- Multi-Point Shoot-Bolt Locking
Technical Architecture of Architectural Aluminium Stack Doors
Modern architectural design relies heavily on seamless transitions between indoor living environments and outdoor landscapes. As China’s leading manufacturer and B2B export partner for premier building envelopes, our facility in Foshan engineer advanced aluminium stack doors (also structurally categorized as multi-panel telescopic sliding stackers or accordion bi-fold systems) to resolve complex thermal, structural, and acoustic challenges faced by international project developers.
1. Alloy Metallurgy & Extrusion Precision
The structural backbone of any high-span stacking system resides in the extruded alloy chemistry. We exclusively utilize primary billet 6063-T5 and high-tensile 6063-T6 structural aluminum. By strictly controlling profile wall thickness between 2.0mm and 3.0mm for load-bearing stiles, our stacking systems achieve exceptional wind pressure ratings (up to 5.0 kPa), exceeding strict international standards such as Australian AS2047, North American NAFS, and European EN 14351-1.
2. Thermal Barrier Technology (PA66GF25)
To eliminate severe heat transfer across structural aluminum frames in extreme climates, our engineering team integrates high-grade Polyamide 66 reinforced with 25% glass fiber (PA66GF25) insulation strips. This thermal break construction isolates interior frame temperatures, dramatically reducing system U-Factors down to 1.4 W/m²K when combined with Low-E double or triple-glazed Insulated Glass Units (IGUs).
Multi-Track Telescopic Engineering
Engineered with 3-track, 4-track, or custom multi-rail aluminum tracks, allowing 3 to 8 panels to stack neatly behind a fixed jamb or hide inside wall pockets.
Severe Storm & Hurricane Protection
Tested for high-velocity hurricane zones (HVHZ), featuring laminated impact-resistant glass, reinforced interlockers, and heavy-duty corner crimping.
Acoustic & Environmental Sealing
Continuous EPDM double synthetic rubber gaskets coupled with dense wool-pile weather-stripping provide noise isolation up to STC 42 dB.
Future Procurement Trends in Aluminium Stack Doors (2025–2030)
Strategic analysis for commercial buyers, architectural specifiers, and distribution partners.
As energy efficiency mandates tighten globally and commercial developments demand larger uninterrupted glass areas, procurement priorities for B2B importers are shifting significantly. Understanding these micro and macro trends ensures project profitability and market competitive advantages:
| Procurement Trend Focus | Legacy Technology | Next-Generation Specification | Impact on B2B Project Sourcing |
|---|---|---|---|
| Sightline Aesthetics | Wide stiles (90mm - 120mm) | Ultra-slim sightlines (20mm - 38mm) | Drives high-end architectural appeal; requires higher alloy strength (6063-T6). |
| Threshold Ergonomics | High stepped water sills (50mm+) | Flush ADA-compliant recessed drain tracks | Solves accessibility concerns while using integrated sub-floor drainage channels. |
| Thermal Compliance | Standard non-thermal or PVC strips | Technoform PA66GF25 + Aerogel insulation | Essential for meeting US Title 24, European NZEB, and Australian NCC 2023 energy codes. |
| Automation & Smart Control | Manual push-pull operation | Motorized linear drive with smart home integration | Growing demand in luxury residential villas, high-end hospitality, and resort projects. |
| Surface Durability | Standard anodizing / basic paint | Fluorocarbon PVDF (AAMA 2605) coatings | Ensures 25+ years of resistance against salt-spray corrosion in coastal developments. |
Stacking Doors vs. Bi-Fold Doors: Architectural Selection Guide
Selecting the ideal door mechanism for specific structural openings and climate requirements.

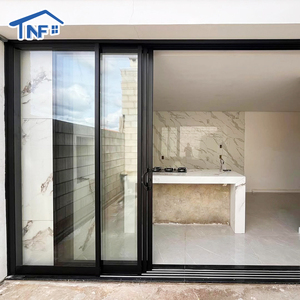

Multi-Panel Inline Aluminium Stack Doors
Telescopic stackers operate on independent parallel tracks where panels slide past one another and park neatly behind a fixed panel or wall pocket.
- Opening Efficiency: 66% to 75% clear opening.
- Wind Resistance: Superior load capabilities due to inline interlocks.
- Screen Compatibility: Easily pairs with heavy-duty insect screens or stainless security meshes.
- Best Applied: Coastal high-rise apartments, wide villa patios, high-wind zones.

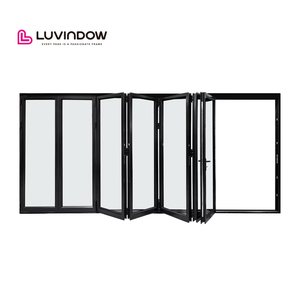

Accordion Bi-Fold Stacking Systems
Bi-fold doors utilize top-hung or bottom-rolling hinges to fold panels concertina-style against the exterior or interior jamb wall.
- Opening Efficiency: Up to 90%+ total clear space clearance.
- Visual Continuity: Zero fixed panel obstruction when folded.
- Threshold Options: Ultra-low flush sills for seamless indoor-outdoor flooring.
- Best Applied: Restaurant storefronts, garden access walls, residential entertainment hubs.
Why Partner with VELTOR Foshan Manufacturing Facility?
Rigorous Quality Management, End-to-End OEM Customization, and Global Export Compliance.
Located in Nanhai District, Foshan City — China’s premier industrial epicenter for architectural aluminum extrusions — Veltor Window & Door Co., Ltd. operates a specialized manufacturing matrix dedicated exclusively to export-gradefenestration systems. Unlike regional traders, we oversee every phase of fabrication within our ISO 9001 certified facility:
Precision CNC Machining
German-imported double-head cutting saws and 4-axis CNC machining centers guarantee milling accuracy within ±0.2mm, delivering air-tight mitred corners and seamless joint alignments.
100% Pre-Shipment Trial Assembly
Every single multi-panel stack door order undergoes structural assembly, roller calibration, lock testing, and protective film wrapping prior to export packing.
Heavy Export Wood Crating
Products are secured inside fully enclosed, fumigated solid plywood crates with foam corner protectors and moisture-proof vacuum wrapping to withstand long ocean transits.
Frequently Asked Questions by Importers & Specifiers
Clear, authoritative technical answers regarding customization, compliance, minimum orders, and shipping protocols.
What is the minimum order quantity (MOQ) for custom aluminium stack doors?
Because every structural opening is fabricated to bespoke engineering drawings, VELTOR supports single-project orders (e.g., custom luxury villas) as well as full container loads (FCL) for commercial importers and distributors. We optimize shipping economics by consolidating window and door units into single freight shipments.
Are your stacking door systems thermal-break certified for cold climate regions?
Yes. Our thermal break series feature structural Polyamide (PA66GF25) thermal barriers integrated with double or triple-pane Low-E insulated glass units (IGUs), warm-edge spacers, and argon gas filling. These systems prevent interior condensation and strictly comply with energy codes in North America, Northern Europe, and Southern New Zealand.
Can VELTOR supply product certifications compliant with my local country codes?
We engineer systems to satisfy specific regional testing protocols. Our product lines meet or exceed Florida Product Approval (hurricane impact rating), NFRC thermal standards (USA), AS2047 / AS1288 structural glass standards (Australia), and CE EN14351-1 fenestration mandates (Europe). Full test reports are made available during drawing confirmation.
How are heavy glass stack doors packed to prevent transit damage during sea shipping?
Each door sash and aluminum frame frame profile is wrapped in anti-scratch protective film, labeled by opening number corresponding to site installation schedules, surrounded by dense shock-absorbing EPE foam, and sealed inside heavy-duty fumigated wooden crates designed for forklift handling.
What hardware options are offered for commercial stacking systems?
We partner with premier hardware engineering brands, including German SIEGENIA, HOPPE, GU, and ROTO, alongside high-durability custom stainless steel roller systems capable of supporting up to 300kg per panel for oversized panoramic glass applications.
What is the standard production lead time upon drawing approval?
Standard manufacturing lead time ranges from 25 to 35 business days following shop drawing sign-off and deposit receipt. Special fluorocarbon PVDF powder colors or custom glass lamination may add 5 to 7 days to the production matrix.
Ready to Elevate Your Project with China’s Premier Stack Door Manufacturer?
Send us your window schedule, architectural blueprints, or project requirements today. Our senior engineering team will provide detailed shop drawings and factory-direct pricing within 24 hours.
