Featured Aluminium Brown Doors & Fenestration Systems
Engineered to meet stringent NFRC, CE, and AS2047 international standards. Manufactured in Foshan, China using premium 6063-T5/T6 structural aluminum profiles.
Florida Miami NFRC Hurricane Proof LOWE Waterproof Aluminium French Doors Exterior

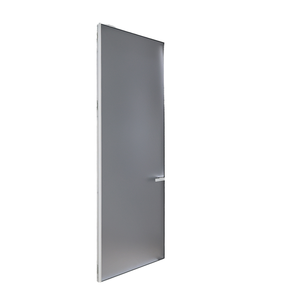

Factory Direct Custom Color Powder Coated Brown Aluminum Door Soundproof Minimalist Design
Modern Commercial Entrance Door Steel Aluminum Alloy Pivot Anti-Theft Waterproof Features

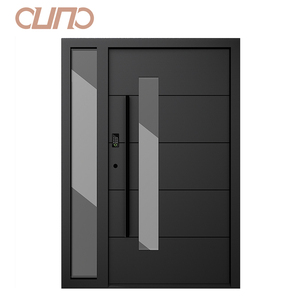

European Cast Aluminum Anti-Theft Security Exterior Brown Door Residential Main Front Door
Modern Design Front Entry Door Fireproof Solid Aluminum Finished Exterior Brown Entry Doors

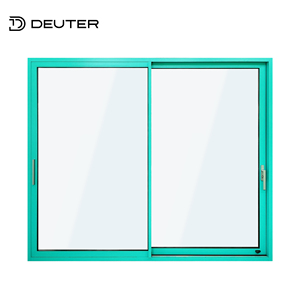

Typhoon Proof Aluminum Sliding Patio Door Thermal Break Double Glazed Brown Slim Frame
Modern Pivot Door Anti-Theft Minimalist Aluminum Finished Entry For Villa Outdoor Use
NFRC America Standard Aluminum Frame Large View Glass Accordion Bifolding Brown Patio Door
Engineering Architectural Aluminium Brown Doors: Materials & Surface Integrity
In high-end architectural fenestration, the specification of a China Top Aluminium Brown Door Manufacturer & Exporter involves far more than aesthetics. Earthy tones—ranging from deep espresso, bronze anodized, coffee brown, to rich dark walnut powder coats—have emerged as the definitive color palette for luxury modern villas, upscale commercial developments, and heritage restoration projects. Achieving long-term performance requires structural alloy selection, advanced surface chemistry, thermal break integration, and micro-precision hardware installation.
At our primary export manufacturing base in Foshan, China, we extrude strictly virgin 6063-T5 and 6063-T6 aluminum alloys. Unlike recycled aluminum scrap which contains impurities that cause micro-cracking and uneven anodizing layer thickness, prime-grade 6063 alloy offers superior tensile strength (≥205 MPa) and yield strength (≥180 MPa). This provides the structural rigidity required for oversized glass pivot doors, heavy-duty sliding patio systems, and hurricane-rated exterior French doors.
Fluorocarbon (PVDF) Spraying
Utilizing PPG Fluoronar and AkzoNobel Kynar 500 resins, our 3-coat/2-bake PVDF coating system achieves a minimum film thickness of 40-50 microns. This delivers exceptional UV degradation resistance, preventing gloss loss and color fading even in extreme tropical or high-UV desert climates.
Electro-Anodized Bronze & Brown
Our chemical anodizing tanks create an integral oxide layer measuring 15 to 25 microns (Class I Anodized finish). This electro-deposited metallic brown layer cannot chip, peel, or flake, making it the supreme choice for salt-mist coastal applications and heavy traffic commercial entries.
PA66-GF25 Thermal Barriers
To break the thermal bridge in aluminum frames, we crimp Technoform 25% glass-fiber reinforced polyamide (PA66-GF25) structural insulation strips. This reduces the frame U-factor down to U ≤ 1.6 W/m²·K, stopping indoor heat loss while eliminating frame condensation in cold northern markets.
Technical Specification Standard for Export Aluminium Brown Doors
Direct structural comparison of aluminum brown door typology for overseas procurement officers, developers, and facade consultants.
| Door Typology | Profile Wall Thickness | Thermal Performance (U-Value) | Acoustic Isolation (STC) | Max Panel Dimensions | Locking & Hardware Integration |
|---|---|---|---|---|---|
| Heavy-Duty French Door | 2.0mm - 2.5mm | 1.4 - 1.8 W/m²K | 38 - 42 dB | 1300mm x 3000mm | German HOPPE Multi-Point Lock System |
| Minimalist Pivot Entry Door | 3.0mm - 4.0mm | 1.6 - 2.0 W/m²K | 35 - 40 dB | 2200mm x 6000mm | DormaKaba Hydraulic Concealed Pivot Spindle |
| Typhoon Lift & Slide Door | 2.2mm - 3.0mm | 1.3 - 1.6 W/m²K | 40 - 45 dB | 3300mm x 4000mm | CMECH Heavy Duty Tandem Roller (400kg Load) |
| Accordion Bi-Fold Wall | 2.0mm - 2.2mm | 1.5 - 1.9 W/m²K | 36 - 40 dB | 1100mm x 3500mm per sash | Top-Hung Stainless Carrier with Bottom Guide Track |
| European Security Cast Entry | 3.0mm + 8mm Cast Plate | 1.8 - 2.2 W/m²K | 42 - 48 dB | 1500mm x 2800mm | Biometric Fingerprint + 12-Bolt Anti-Theft Lock |
Future Procurement Trends in Architectural Aluminium Brown Fenestration
As global energy codes become increasingly rigorous—such as Europe's EPBD directives, America's ASHRAE 90.1, and Australia's NCC Section J requirements—the role of a specialized Aluminium Brown Door Manufacturer & Exporter has shifted from basic fabrication to high-technology facade engineering. Procurement officers and commercial distributors are focusing on several key future procurement shifts:
1. Low-Carbon Hydro-Aluminium Sourcing
Global buyers are now enforcing Scope 3 emissions tracking. Our factory utilizes aluminum extruded using hydropower-smelted ingots, guaranteeing an embodied carbon footprint of less than 4.0 kg CO2e per kg of aluminum, significantly below the global industry average of 16.5 kg CO2e.
2. Ultra-Slim Sightlines & Flush Thresholds
Architectural trends lean heavily toward ultra-narrow interlocks (as thin as 20mm visible profile) combined with ADA-compliant zero-step flush drainage thresholds. These designs maintain watertight integrity up to 750 Pa while allowing continuous indoor-outdoor floor transitions.
3. Smart Home & Biometric Access Integration
Modern brown aluminum main entry doors are no longer isolated mechanical barriers. They are pre-wired during factory assembly with hidden motor drives, solenoid locks, facial recognition cameras, and home automation interfaces (Z-Wave, Zigbee, Matter compliance).
Foshan Manufacturing Supply Chain Advantage
Direct Factory Sourcing from Nanhai, Foshan
Located at the global epicenter of architectural aluminum extrusion, our factory operates advanced CNC double-head miter saws, 5-axis machining centers, and automated assembly lines under one roof. We cut out middleman trading markups to deliver direct factory pricing.
Pre-Shipment Trial Assembly & 100% QC Inspection
Every custom brown aluminum door order undergoes full modular trial installation in our factory before crating. We verify frame squareness, diagonal tolerance (±1mm), gasket seal compression, locking mechanism engagement, and surface coating thickness.
Reinforced Export Wooden Crate Packaging
International shipping demands rugged packaging. Our doors are wrapped in anti-scratch protective film, corner-guarded with high-density EPE foam, and encased in fully sealed, ISPM-15 compliant fumigated plywood crates. Each crate is labeled with opening tags for immediate site sorting.
Bespoke CAD / Revit BIM Engineering Support
Our dedicated project engineering team converts your architectural floor plans into detailed cross-sectional shop drawings within 48 hours. We assist developers and general contractors with structural wind load calculations, glass deflection analysis, and code compliance checks.
Aluminium Brown Door B2B Procurement FAQ
Addressing key technical, logistical, and commercial queries from international importers, project dealers, and architectural buyers.
How do you ensure color uniformity across large-batch aluminum brown door orders?
Color consistency in brown finishes—whether anodized or powder-coated—requires strict process control. We utilize automated computer-controlled vertical spraying lines with constant bath temperature and electrostatic voltage controls. For anodized architectural bronze/brown, we perform spectrophotometer batch color matching (Delta E < 0.5) against approved master color chips before profile cutting.
Can your aluminum brown doors meet hurricane impact ratings for Florida/Caribbean coastal zones?
Yes. Our hurricane-proof series is specifically engineered with heavy-gauge 6063-T6 aluminum frames, steel internal reinforcements, heavy-duty continuous hinges, and laminated glass configurations (e.g., 6mm Tempered + 1.52mm PVB + 6mm Tempered). These units meet NFRC standards and pass TAS 201, 202, and 203 missile impact and cyclic pressure testing up to DP70.
What thermal break insulation technology is used in cold climate exports?
We employ high-precision Technoform or custom PA66-GF25 (25% Glass Fiber Reinforced Polyamide) thermal barrier strips crimped mechanically between the inner and outer aluminum extrusions. Combined with triple-pane double Low-E insulated glass units (IGUs) filled with 90% Argon gas and warm-edge spacers, our systems achieve U-factors as low as 1.2 W/m²K (0.21 BTU/h·ft²·°F).
What is the standard production lead time and ocean shipping logistics handling?
Typical manufacturing lead time is 25 to 35 calendar days following shop drawing sign-off and deposit confirmation. We export worldwide on FOB, CIF, DDP, or DAP terms. Our logistics division handles full container loading (FCL) or less-than-container loading (LCL) consolidation, providing complete export customs documentation, certificates of origin (Form E, COO), and bill of lading releases.
Do you support private labeling, OEM manufacturing, and dealer sample kits?
Absolutely. We partner with building material distributors, window brand owners, and project dealers globally. We offer custom logo protective film branding, branded hardware laser etching, tailored architectural binder catalogues, and aluminum corner profile sample boxes featuring our complete range of brown, bronze, and custom RAL surface coatings.
What warranty coverage is provided on structural profiles, coatings, and hardware?
We provide a 10-Year Comprehensive Warranty covering aluminum structural frame integrity, a 15-to-25 Year Warranty on PVDF/Anodized surface coatings against fading or peeling, a 10-Year Warranty on insulated glass unit seal integrity, and a 5-Year Warranty on mechanical hardware components (handles, hinges, locks, and tandem rollers).
Ready to Elevate Your Architectural Door Specification?
Send us your door schedules, CAD drawings, or project tender specifications. Our facade engineering team will deliver a comprehensive technical proposal, structural calculations, and competitive factory-direct pricing within 24 hours.
