Featured Aluminium Coated Door & Window Systems
Precision-engineered architectural systems fabricated in Foshan, China. Featuring thermal break profiles, heavy-duty surface coatings, and weather-sealed multi-point hardware.

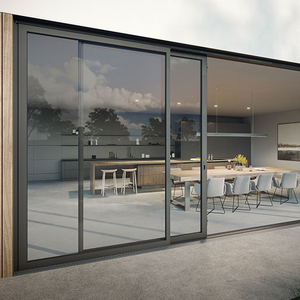

YY Facades AS2047 Australian Windows & Doors Stacker Doors Australian Standard 3 Panel Glass Aluminum Sliding Doors
Durable Four Panel Aluminum Alloy Sliding Door With Anti Rust Coating for Bedroom Bathroom Wardrobe
Landsharp Modern French Style Black White Vertical Aluminum up Down Sliding Single Hung Sash Windows for House
White French Grid Window Modern Style Aluminum Fixed Window Custom Color Exterior for Home Hotel Project
DERCHI Q9 Series High End Large Half View Ultra-narrow Aluminum Sliding Door Heavy Duty Big Panel Glass Door
Child-Safe Rounded Corner Protection Design Aluminum Outswing Window Triple Glazed Toughened Glass Security Casement Window
Customized Heavy Duty Residential Front Entry Doors Hurricane Impact Exterior Aluminum Villa Entrance Door
Customized Aluminum Double Glass Sliding Door Energy Efficient NFRC AS2047 Certification Aluminum Heavy Duty Lift Sliding Doors
Why Sourcing Aluminium Coated Doors from Foshan Offers Unmatched Information Gain & ROI
Foshan, Guangdong, represents the global epicenter of architectural aluminum profile extrusion and surface coating technology. Sourcing directly from an audited Foshan manufacturer eliminates intermediary markups and guarantees adherence to international fenestration engineering standards.
Vertical Supply Chain Integration
Located in Nanhai District, our factory operates with end-to-end control over 6063-T5 aluminum alloy extrusion, chemical pretreatment, fluorocarbon (PVDF) coating, thermal-break assembly, and final insulating glass unit (IGU) installation under one rigorous QA system.
Advanced Surface Pretreatment
Before applying powder or PVDF coatings, profiles undergo nano-ceramic chromate-free conversion baths. This process removes surface oxides and establishes a microscopic bonding layer that prevents micro-blistering, flaking, and filiform corrosion in marine environments.
Precision CNC Fabrication
Double-head automated cutting saws and 4-axis CNC machining centers ensure corner miter tolerances within ±0.3mm. Every mortise lock cavity, drainage channel, and corner crimp slot is executed according to CAD/BIM shop drawings.
Technological Trends in Architectural Aluminium Coatings & Thermal Insulation
The fenestration industry is undergoing a paradigm shift driven by stringent decarbonization building codes, extreme weather durability demands, and minimalist architectural aesthetics.
1. Fluorocarbon Coating (PVDF) vs. Electrostatic Powder Coating
For commercial high-rises and luxury coastal villas, surface coating selection dictates the building's lifecycle maintenance costs. Modern China manufacturers utilize 70% Kynar 500 / Hylar 5000 PVDF resin coatings applied via a 3-coat 2-bake automated process. PVDF provides unprecedented resistance against UV radiation, acid rain, salt spray corrosion (exceeding 3,000 hours in ASTM B117 salt fog testing), and gloss degradation.
Conversely, for interior partitions and moderate residential climates, Qualicoat Class 2 Super Durable Powder Coatings offer an eco-friendly, zero-VOC alternative with high scratch resistance and an extensive palette of RAL colors, fine textures, and anodized-effect finishes.
2. Polyamide PA66-GF25 Thermal Break Barriers
Standard aluminum profiles are highly conductive ($K \approx 160\text{ W/m}\cdot\text{K}$). Modern energy-efficient aluminium doors incorporate a multi-chambered structural barrier crafted from Polyamide PA66 reinforced with 25% glass fiber ($K \approx 0.3\text{ W/m}\cdot\text{K}$).
By mechanically crimping PA66 thermal strips between the exterior and interior extruded aluminium profiles, heat transfer across the frame is reduced by over 75%. Combined with double or triple insulated glass units (IGU) containing Low-E coatings, warm-edge spacers, and argon gas infill, overall door system thermal performance achieves U-factors below $1.4\text{ W/m}^2\cdot\text{K}$ (U-value < 0.25 BTU/hr·ft²·°F), satisfying Passive House and NFRC energy ratings.
Aluminium Surface Treatment Technical Comparison
Select the optimal surface finish for your target project environment, wind-load specification, and budget parameters.
| Coating Technology | Resin / Chemical Base | Film Thickness | Salt Spray Resistance | UV & Chalking Life | Primary B2B Application |
|---|---|---|---|---|---|
| PVDF Fluorocarbon (3-Coat) | 70% PVDF (Kynar 500) | 30 – 45 μm | > 3,500 Hours | 25 – 30 Years | Coastal Villas, High-Rise Curtain Walls, Severe UV Regions |
| Qualicoat Class 2 Powder | Super Durable Polyester | 60 – 80 μm | > 1,500 Hours | 12 – 15 Years | Urban Residential, Commercial Storefronts, Hotel Patios |
| Anodized Hardcoat | Electrochemical Al₂O₃ | 15 – 25 μm | > 2,000 Hours | 20 – 25 Years | Minimalist Architectural Frames, High-Traffic Entrances |
| Wood Grain Heat Transfer | Polyurethanes + Sublimation Film | 60 – 70 μm | > 1,000 Hours | 8 – 10 Years | Biophilic Residential Interior & Exterior Patio Doors |
Future Sourcing & Procurement Trends for Global Buyers
Key architectural trends shaping global demand for aluminum door and window imports over the next decade.
1. Ultra-Narrow Sightlines & Panoramic Glazing
Architects are demanding minimal frame visibility to maximize daylight ratio. Ultra-slim sliding doors with interlock sightlines as thin as 16mm to 25mm—capable of supporting glass panel weights up to 400kg via concealed heavy-duty stainless steel rollers—are fast becoming the standard for modern residential luxury projects.
2. Recycled Low-Carbon Aluminium Billets
To fulfill ESG targets and comply with European carbon border adjustment mechanisms (CBAM), top Chinese manufacturers are adopting certified low-carbon primary aluminum extrusions refined using hydroelectric power, reducing embodied carbon dioxide equivalent ($CO_2e$) per metric ton of frame profile by over 60%.
3. Smart Home & Motorized Hardware Integration
Procurement schedules increasingly require integration with building management systems (BMS). High-end aluminium sliding and lift-and-slide doors now feature concealed electric actuators, pinch-safe infrared safety sensors, biometric fingerprint access controls, and electrochromic smart glass tinting options.
Frequently Asked Questions (FAQ) for Global Buyers
Essential technical, logistics, and quality assurance answers for commercial developers, general contractors, and door distributors sourcing from China.
Request Architectural Specifications & Project Quotes
Partner directly with China's leading manufacturer of high-performance aluminium coated doors. Our engineering team provides detailed CAD shop drawings, U-value thermal estimates, and competitive factory-direct B2B pricing within 24 hours.
